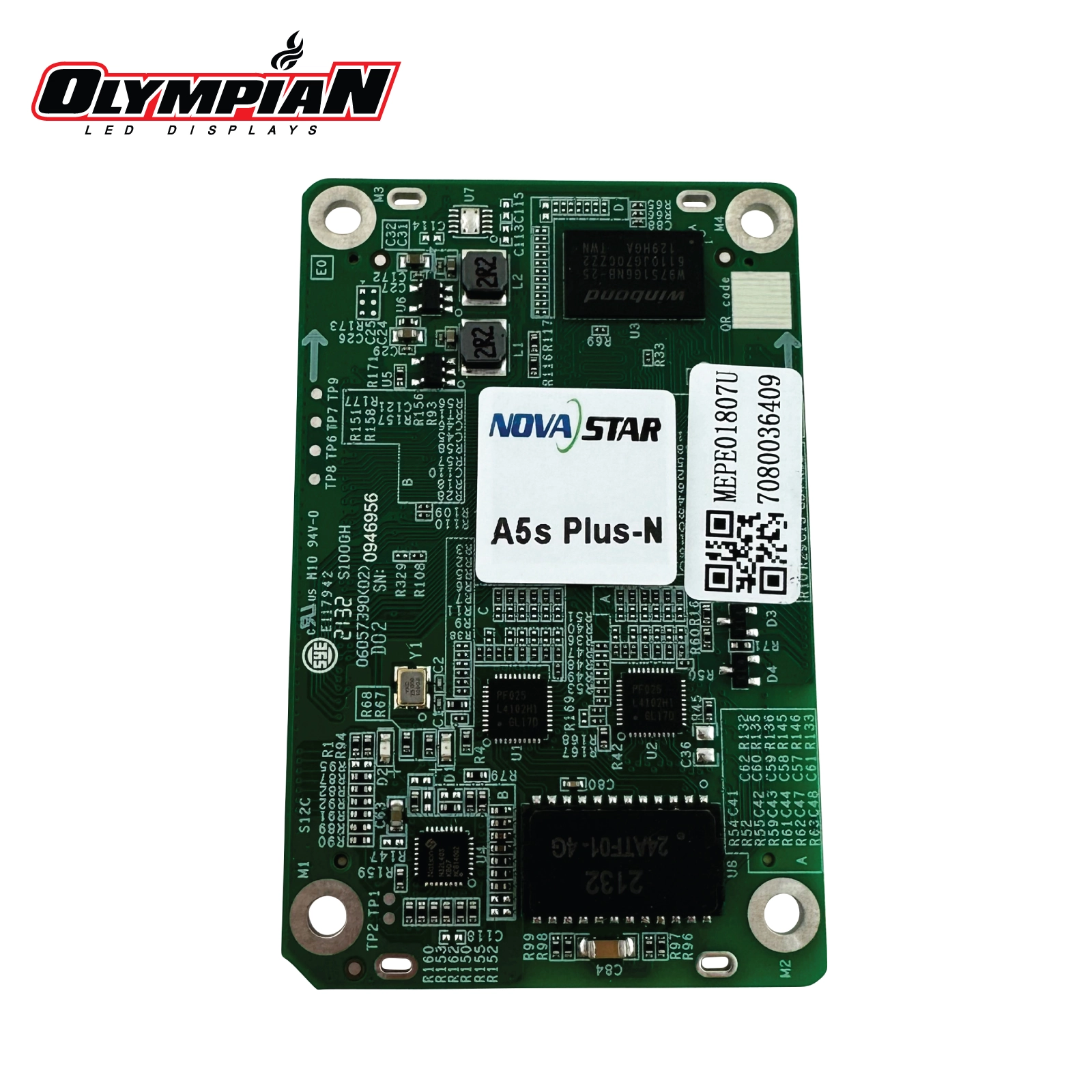

NovaStar A5s Plus-N

The A5s Plus-N is a high-capacity receiving card from NovaStar designed for premium LED display applications. A single A5s Plus-N supports resolutions up to 512×384@60Hz (requires NovaLCT V5.3.1 or later), providing excellent performance for high-resolution LED modules. This card features advanced color management, 18bit+ color depth for smooth color transitions and enhanced image quality, pixel-level brightness and chroma calibration for uniform display performance, quick adjustment of dark or bright lines for simplified maintenance, low latency for real-time applications, 3D support for immersive visual experiences, individual gamma adjustment for RGB channels, and flexible image rotation in 90° increments for various installation orientations. The A5s Plus-N uses high-density connectors that resist dust and vibration, ensuring stable operation in demanding environments. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups), offering maximum flexibility for different LED module configurations. Reserved pins allow for custom functions to meet specific application requirements. Ideal for high-resolution LED displays requiring superior image quality and performance.
