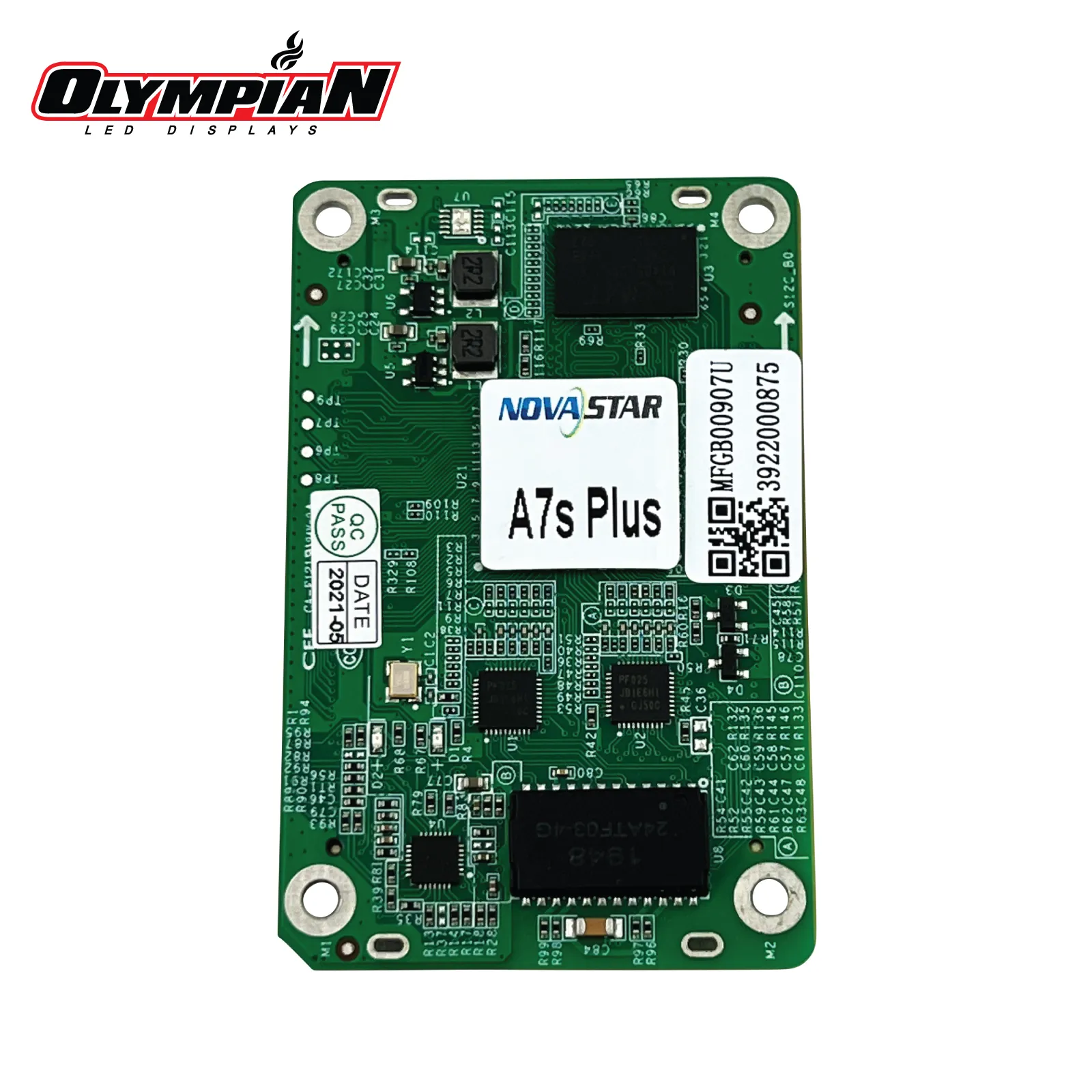

NovaStar A7s Plus
NovaStar A7s Plus
The A7s Plus is a general small receiving card. For PWM driver ICs, a single A7s Plus supports resolutions up to 512×512@60Hz. For common driver ICs, a single A7s Plus supports resolutions up to 512×384@60Hz. Supporting color management, 18bit+, pixel level brightness and chroma calibration, quick seam correction, 3D, individual gamma adjustment for RGB, image rotation in 90° increments, and other functions, the A7s Plus can significantly improve the display effect and user experience. The A7s Plus uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware design, the A7s Plus has improved electromagnetic compatibility and is suitable for various on-site setups.
Key Highlights
Key Features
3D
Backup
Color Calibration
18bit+
Mapping 1.1
Pixel-Level Brightness and Chroma Calibration
Technical Specifications
Video Processing
| Maximum Pixels | 262.1K pixels |
| Maximum Width | 512 pixels |
| Maximum Height | 512 pixels |
Physical Specifications
| Power Input | DC 3.8 V to 5.5 V, 0.6 A, 3.0 W |
| Dimensions | 70.0 mm × 45.0 mm × 8.2 mm (2.8" × 1.8" × 0.3") |
| Net weight | 17.4 g |
| Packing box | 392.0 mm × 200.0 mm × 123.0 mm (15.4" × 7.9" × 4.8") |
Features
Load Capacity
Software
| NovaLCT 5.8.0 | ⬇️ Windows |
| Compatible Software | NovaLCT |
Why Choose the A7s Plus?
✓ High Performance
Optimized for high-resolution displays with pixel-level calibration
✓ Wide Compatibility
Works seamlessly with NovaStar controllers and processors
✓ Easy Configuration
Simple setup with NovaLCT software and intuitive controls
✓ Reliable Operation
Backed by 3-Year NovaStar Warranty for dependable performance
