NovaStar DH3208
NovaStar DH3208

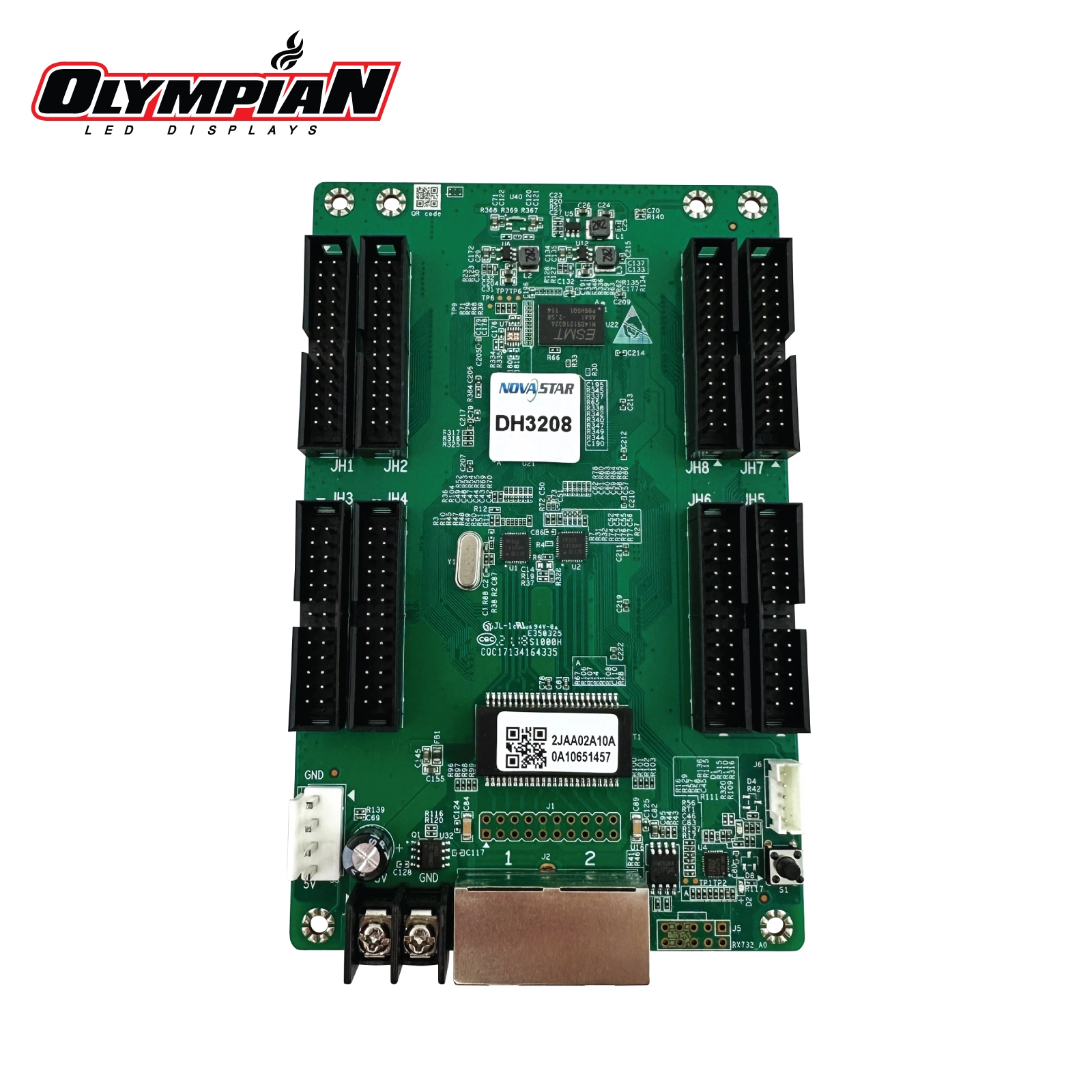

The DH3208 is a general receiving card developed by NovaStar. For PWM driver ICs, a single DH3208 supports resolutions up to 512×512@60Hz. For common driver ICs, a single DH3208 supports resolutions up to 512×384@60Hz. Supporting various functions such as color management, 18bit +, pixel level brightness and chroma calibration, quick adjustment of dark or bright lines, 3D, individual gamma adjustment for RGB, and image rotation in 90° increments, the DH3208 can significantly improve the display effect and user experience. The DH3208 uses 8 HUB320 connectors for communication.
Key Highlights
Key Features
3D
Backup
Color Calibration
18bit+
Mapping 1.0
Pixel-Level Brightness and Chroma Calibration
Technical Specifications
Video Processing
| Maximum Pixels | 262.1K pixels |
| Maximum Width | 512 pixels |
| Maximum Height | 512 pixels |
🔌 HUB320 Connector Pinouts
| Description | Pin | Signal | Signal | Pin | Description |
|---|---|---|---|---|---|
| Red data line 1 | 1 | R1 | G1 | 2 | Green data line 1 |
| Blue data line 1 | 3 | B1 | GND | 4 | Ground |
| Red data line 2 | 5 | R2 | G2 | 6 | Green data line 2 |
| Blue data line 2 | 7 | B2 | GND | 8 | Ground |
| Red data line 3 | 9 | R3 | G3 | 10 | Green data line 3 |
| Blue data line 3 | 11 | B3 | GND | 12 | Ground |
| Red data line 4 | 13 | R4 | G4 | 14 | Green data line 4 |
| Blue data line 4 | 15 | B4 | GND | 16 | Ground |
| Address line A1 | 17 | A1 | B1 | 18 | Address line B1 |
| Address line C1 | 19 | C1 | D1 | 20 | Address line D1 |
| Address line E1 | 21 | E1 | GND | 22 | Ground |
| Clock line | 23 | CLK | LAT | 24 | Latch line |
| Output enable line | 25 | OE | GND | 26 | Ground |
26-pin HUB320 connector for LED display data transmission. Features 4 RGB data channels (R1/G1/B1, R2/G2/B2, R3/G3/B3, R4/G4/B4) vs 2 in HUB75/HUB75E, providing double the data bandwidth. Supports 5 address lines (A1, B1, C1, D1, E1) for 1/32 scan mode (64 rows total). HUB320-based receiving cards can support up to 32 RGB parallel data groups (vs typically 12-16 for HUB75E), enabling higher pixel capacities (up to 512×512 pixels vs 256×256 for HUB75E). The additional pins and enhanced design provide better signal integrity over longer cable runs, faster refresh rates, and support for advanced features like 18-bit+ color depth. Ideal for high-resolution, fine-pitch LED displays requiring maximum performance and data throughput.
Physical Specifications
| Power Input | DC 3.8 V to 5.5 V, 0.5 A, 2.5 W |
| Dimensions | 145.7 mm × 91.5 mm × 18.3 mm (5.7" × 3.6" × 0.7") |
| Net weight | 100.0 g |
Features
Software
| NovaLCT 5.8.0 | ⬇️ Windows |
| Compatible Software | NovaLCT |
Why Choose the DH3208?
✓ High Performance
Optimized for high-resolution displays with pixel-level calibration
✓ Wide Compatibility
Works seamlessly with NovaStar controllers and processors
✓ Easy Configuration
Simple setup with NovaLCT software and intuitive controls
✓ Reliable Operation
Backed by 3-Year NovaStar Warranty for dependable performance
