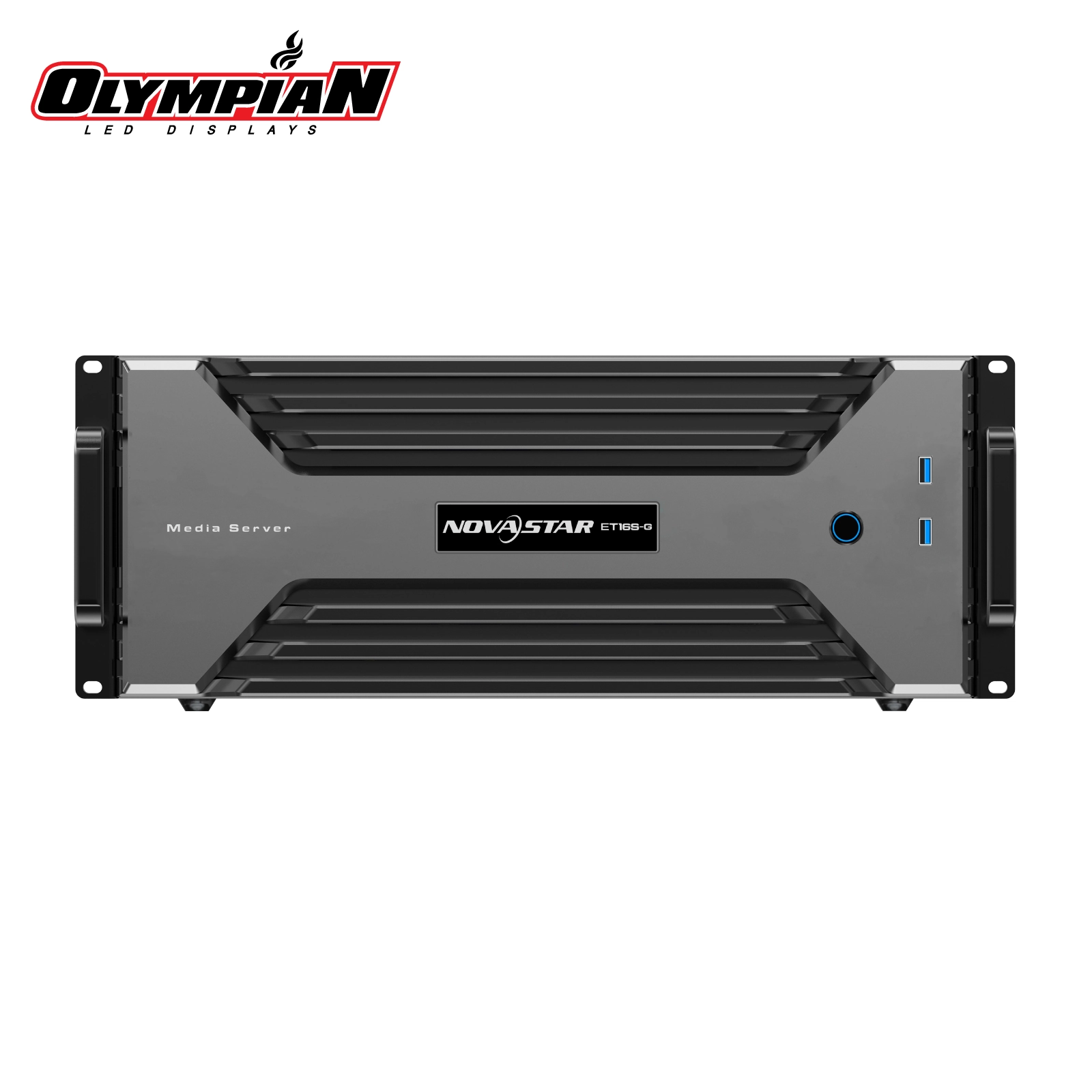

NovaStar ET16S-G
NovaStar ET16S-G
The ET16S-G is NovaStar's flagship ultra-high-performance media server, engineered for the most demanding professional applications requiring exceptional resolution, multi-GPU performance, and flawless frame synchronization. This powerhouse server delivers up to 16K×8K output capacity through up to 16x DP 1.4 outputs (via 4 high-performance graphics cards), enabling connection to massive LED walls, ultra-wide displays, or creation of seamless mosaic displays exceeding 16K resolution. The ET16S-G features 12 mixing layers plus 1 audio channel, with layer count scaling up to 24 or 36 layers depending on graphics card configuration. Powered by Intel® Xeon® Gold processors (single or dual processor configurations) with ECC DDR4 memory (64 GB or 128 GB, expandable) and high-performance workstation motherboard, the ET16S-G ensures reliable operation for mission-critical applications. The server's revolutionary frame synchronization technology, enabled by the included Sync Card II, ensures all graphics cards output frames at exactly the same moment, eliminating visible tearing or seams across massive LED walls. This technology enables multiple ET16S-G servers to be daisy-chained together for installations exceeding 16K, with one server acting as master and others synchronizing to it. The ET16S-G can hardware decode up to 4 channels of 8K@60fps simultaneously, fully utilizing the decoding and rendering capabilities of all available GPUs. A single ET16S-G can replace four traditional single-GPU media servers while providing superior synchronization and control. Built-in Kompass FX3 software provides comprehensive media management with live and pre-edit modes, advanced layer controls, timecode synchronization, multi-screen management, and frame sequence playback. The server supports dual-machine backup for redundancy, remote control via UDP/TCP-IP, and VICP platform integration. With its exceptional performance, frame synchronization, and scalability, the ET16S-G is the ultimate solution for large-scale outdoor advertising displays, naked-eye 3D installations, immersive experiences, data visualization centers, broadcast applications, and exhibition showcases where ultra-high resolution and perfect synchronization are non-negotiable.
Configuration Comparison
| Model | Configuration | Decoding Capacity | Price |
|---|---|---|---|
| ET16S-G (2A4) | ET16S-G (2A4) | 2 layers of 8K@60 or 8 layers of 4K@60 | $17,013 |
| ET16S-G (3A4) | ET16S-G (3A4) | 3 layers of 8K@60 or 12 layers of 4K@60 | $25,156 |
Key Highlights
🔗 Frame Synchronization Technology
The ET16S-G includes a Sync Card (Sync Card II) that acts as a master timing source to ensure all graphics cards output frames at exactly the same moment, eliminating visible tearing or seams on large LED walls. The Sync Card's 2x RJ45 ports enable daisy-chaining multiple ET16S-G servers together for massive 16K+ installations, where one server becomes the master and others synchronize to it. The BNC port accepts external timing signals from broadcast equipment or cameras for genlock capability. This technology is essential for seamless video walls spanning multiple servers, live events, concerts, and broadcast applications where perfect frame synchronization across dozens of outputs is critical.
Technical Specifications
Video Processing
| layers | 12 layers |
| Maximum Width | 16384 pixels |
| Maximum Height | 8192 pixels |
Input Connectors
| USB | 2x USB (front panel), 2x USB (rear panel), 1x USB (rear panel, Type-A), 1x USB (rear panel, Type-C), 4x USB (rear panel, Type-A) |
Input Resolution Capabilities
| Input Resolutions | Up to 5120×2880@60Hz per DP 1.4 output (per graphics card); Mosaic: up to 16384 pixels width/height per card |
Output Connectivity

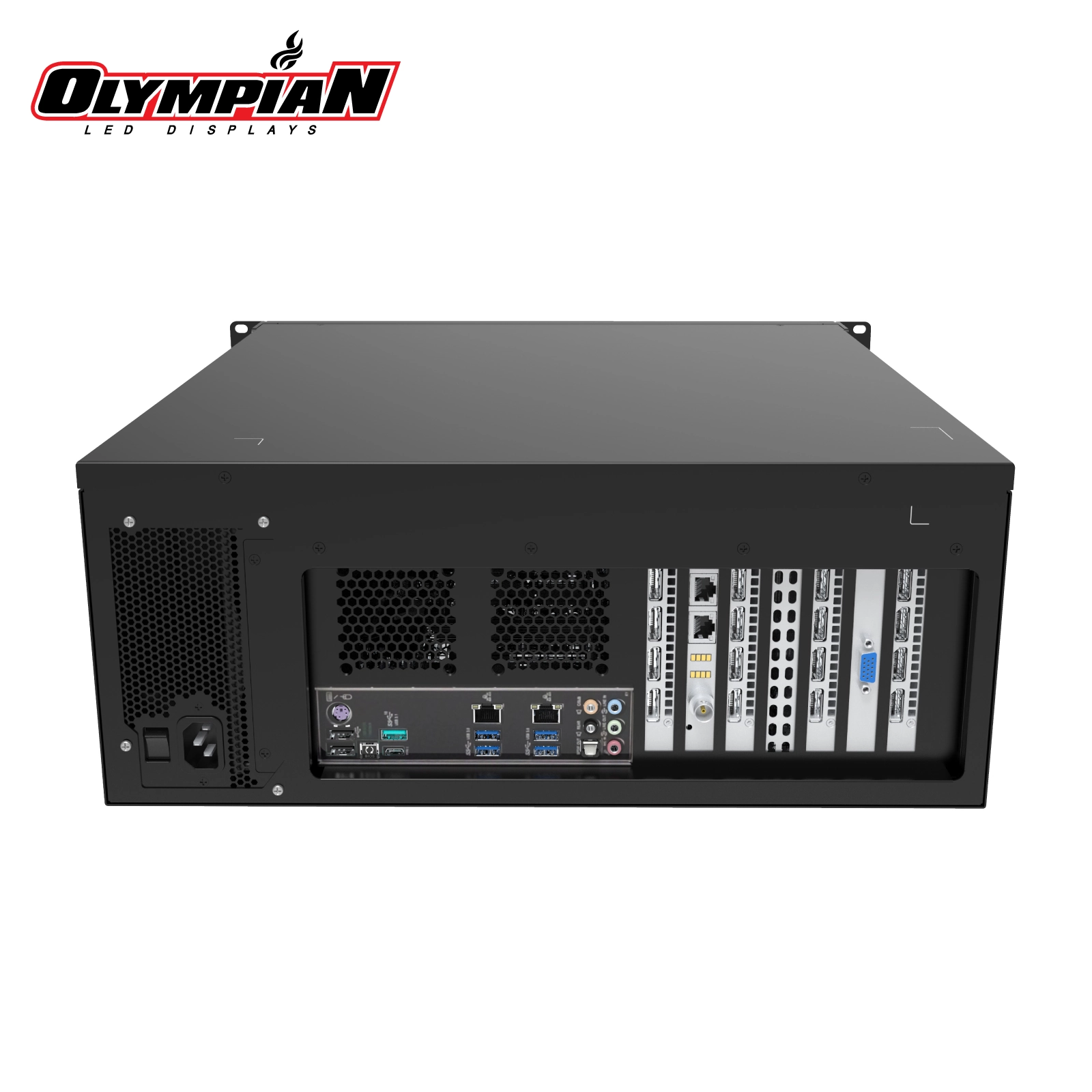

| Ethernet Control | 2x RJ45 Ethernet + Sync card (2x RJ45 + 1x BNC) |
| Monitoring Output | 3x Mini DP (max 4096×2160@60Hz each, CONTROL UI) |
| Audio Output | 1x MIC IN (3.5mm), 1x Line IN (3.5mm), 3x Line OUT (3.5mm), 1x S/PDIF optical |
| USB Ports | 2x USB 3.0 (front), 2x USB 2.0 (rear), 1x USB 3.1 Gen2 Type-A (rear), 1x USB 3.1 Gen2 Type-C (rear), 4x USB 3.1 Gen1 Type-A (rear) |
Hardware
| Processor | Intel® Xeon® Gold 6226R |
| RAM | 64 GB ECC DDR4 (expandable to 128 GB for dual CPU variants) |
| Storage | 1 TB SSD (Dual CPU variant: 1 TB + 960 GB) |
| Operating System | Windows 10 Enterprise LTSC |
| Video Decoding | Hardware decode up to 4 channels of 8K×4K@60fps SDR simultaneously (with 4 graphics cards) |
| Playback Capability | 12 mixing layers + 1 audio |
Physical Specifications
| Power Input | 100-240V~, 8A 50/60Hz, Max 1100W |
| Dimensions | 482.6 mm × 183.5 mm × 569.8 mm (19.0" × 7.2" × 22.4") |
| Net weight | 17.9 kg (39.5 lbs) |
| Operating Temperature | 0°C to 40°C |
| Packing box | 735 mm × 660 mm × 300 mm (28.9" × 26.0" × 11.8") |
Software
| Compatible Software | Kompass FX3, VICP |
🏅 Certifications
📁 Supported Media Formats
| Video Formats | mp4, avi, mkv, flv, mov, wmv, mpeg, mpg, m4v |
| Image Formats | jpg, jpeg, bmp, png, gif, ico |
| Audio Formats | mp3, aac, flac, amr, ape, wav, wma |
| Recommended Codecs | H.265 (HEVC) or VP9 for 4K-8K (width or height ≤8192 pixels); H.264 (AVC) for ≤4K; Videos >8K should be split into multiple files |
📦 Packing Information
| Packing Box Dimensions | 735 mm × 660 mm × 300 mm |
| Included Accessories |
|
Why Choose the ET16S-G?
✓ why_ultra_high_resolution
why_ultra_high_resolution_desc
✓ why_professional_software
why_professional_software_desc
✓ why_scalable_performance
why_scalable_performance_desc
✓ Maximum Reliability
Backed by 3-Year NovaStar Warranty plus Olympian LED support
