NovaStar ET2S-G
NovaStar ET2S-G
The ET2S-G is a mid-range multimedia control system developed by NovaStar, specifically designed for multimedia exhibition halls, banquet halls, stage performances, and other small to medium fixed installation scenarios requiring enhanced performance and flexibility. This powerful media server delivers up to 8K×2K@60Hz output capacity through mosaic-enabled outputs (1x DP 1.2, 2x HDMI 2.0), allowing users to create ultra-wide displays by combining multiple outputs into a single seamless image. The ET2S-G features 8 layers of simultaneous playback plus 1 audio channel, providing ample creative flexibility for complex presentations, live events, and professional stage performances. Powered by a 12th Generation Intel® Core i5-12400 processor and equipped with an NVIDIA T400 dedicated graphics card (2 GB GDDR6), the server delivers reliable hardware-accelerated decoding for high-resolution content. With 16 GB DDR4 RAM and 500 GB M.2 SSD storage, the ET2S-G ensures smooth playback of multiple high-resolution video layers simultaneously. Built-in Kompass FX2 software offers professional media management with two distinct operating modes: Live mode for real-time editing and playback synchronization, and Pre-edit mode for preparing content before display. Advanced features include layer masking, cropping, keying, blurring, opacity adjustment, and crossfade transitions. The server supports hardware decoding of 1 layer 8K×2K@60fps or 2 layers 4K×2K@60fps SDR content, PowerPoint presentations up to 1080p, NDI sources, web streaming, and various media formats. With up to 64 partitions per output and mosaic width/height up to 16,384 pixels, the ET2S-G enables creative display configurations for demanding professional applications.
Key Highlights
Technical Specifications
Video Processing
| layers | 8 layers |
| Maximum Width | 8192 pixels |
| Maximum Height | 2160 pixels |
Input Connectors
| USB | 2x USB (front panel), 2x USB (rear panel), 2x USB (rear panel) |
Input Resolution Capabilities
| Input Resolutions | 4096×2160@60Hz per connector (DP 1.2, HDMI 2.0); Single connector: width 480-8192 pixels, height 300-8192 pixels; Mosaic: up to 16384 pixels width/height; Total loading capacity < 8192×2160@60Hz |

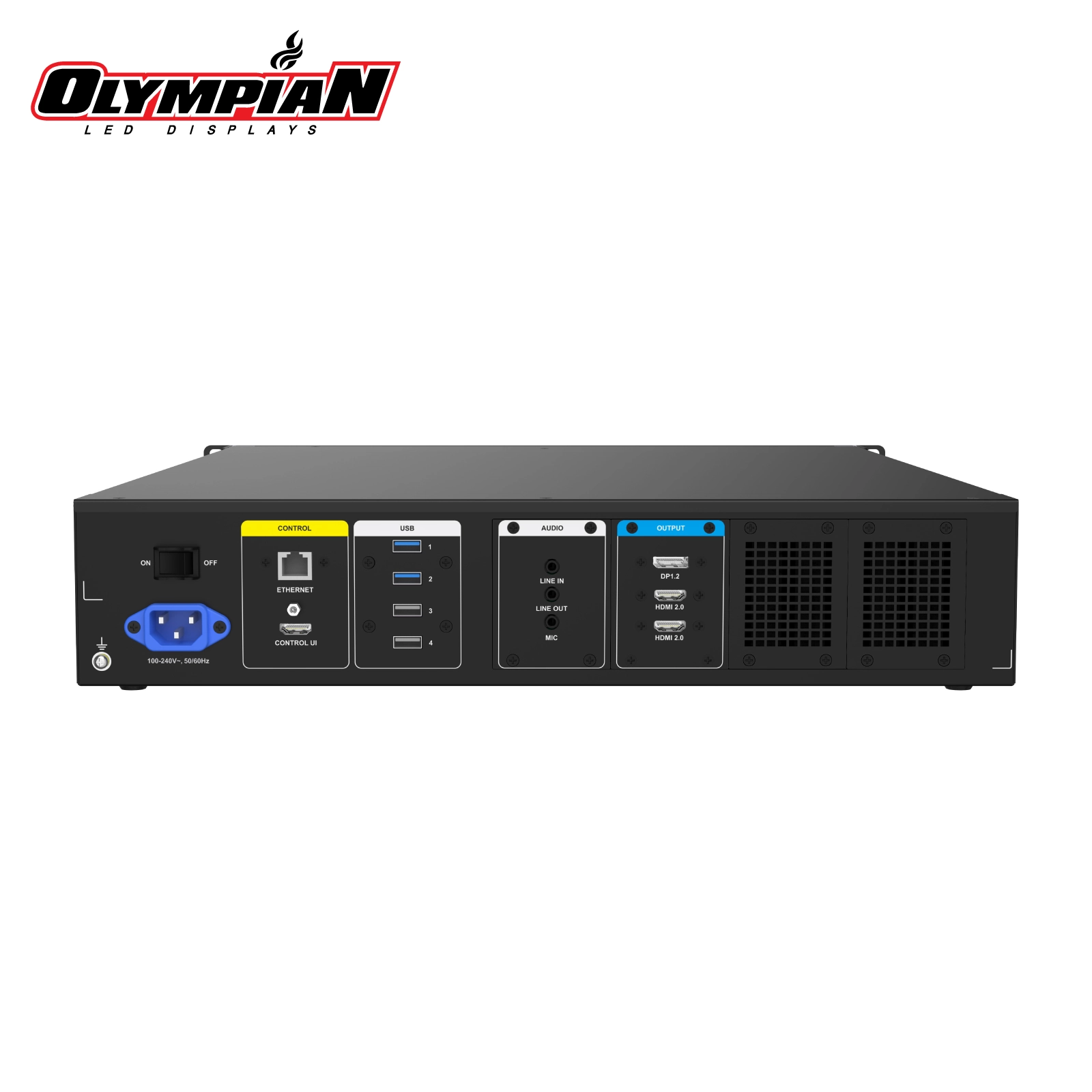

Output Connectivity
| Ethernet Control | 1x RJ45 2.5Gb Ethernet |
| Monitoring Output | 1x HDMI (CONTROL UI, max 2K×1K@60Hz) |
| Audio Output | 1x MIC IN (3.5mm), 1x Line IN (3.5mm), 1x Line OUT (3.5mm) |
| USB Ports | 2x USB 3.0 (front), 2x USB 3.0 (rear), 2x USB 2.0 (rear) |
Hardware
| Processor | Intel® Core™ i5-12400 |
| RAM | 16 GB DDR4 |
| Storage | M.2 SSD 500 GB |
| Operating System | Windows 10 Enterprise LTSC |
| Video Decoding | Hardware decoding: 1 layer 8K×2K@60fps or 2 layers 4K×2K@60fps SDR |
| Playback Capability | 8 layers + 1 audio |
Physical Specifications
| Power Input | 100-240V AC, 50/60Hz, 400W |
| Dimensions | 482.6 mm × 94.6 mm × 581.1 mm (19.0" × 3.7" × 22.9") |
| Net weight | 10 kg (22.0 lbs) |
| Operating Temperature | 0°C to 45°C |
| Packing box | 720 mm × 595 mm × 215 mm (28.3" × 23.4" × 8.5") |
Software
| Compatible Software | Kompass FX2, VICP |
🏅 Certifications
📁 Supported Media Formats
| Video Formats | mp4, avi, mkv, flv, mov, wmv, mpeg, mpg, m4v |
| Image Formats | jpg, jpeg, bmp, png, gif, ico |
| Audio Formats | mp3, aac, flac, amr, ape, wav, wma |
| Recommended Codecs | H.265 (HEVC) or VP9 for 4K-8K; H.264 (AVC) for ≤4K |
📦 Packing Information
| Packing Box Dimensions | 720 mm × 595 mm × 215 mm |
| Included Accessories |
|
