NovaStar H20

Name: NovaStar H20
Brand: NovaStar
SKU: H20
Price: 12281 USD
Availability: LimitedAvailability

💳 Buy Now 📄 Specifications V1.6.0 📖 User Manual V1.13.0

🛡️ 3-Year NovaStar Warranty

FREE GROUND SHIPPING on orders over $500!

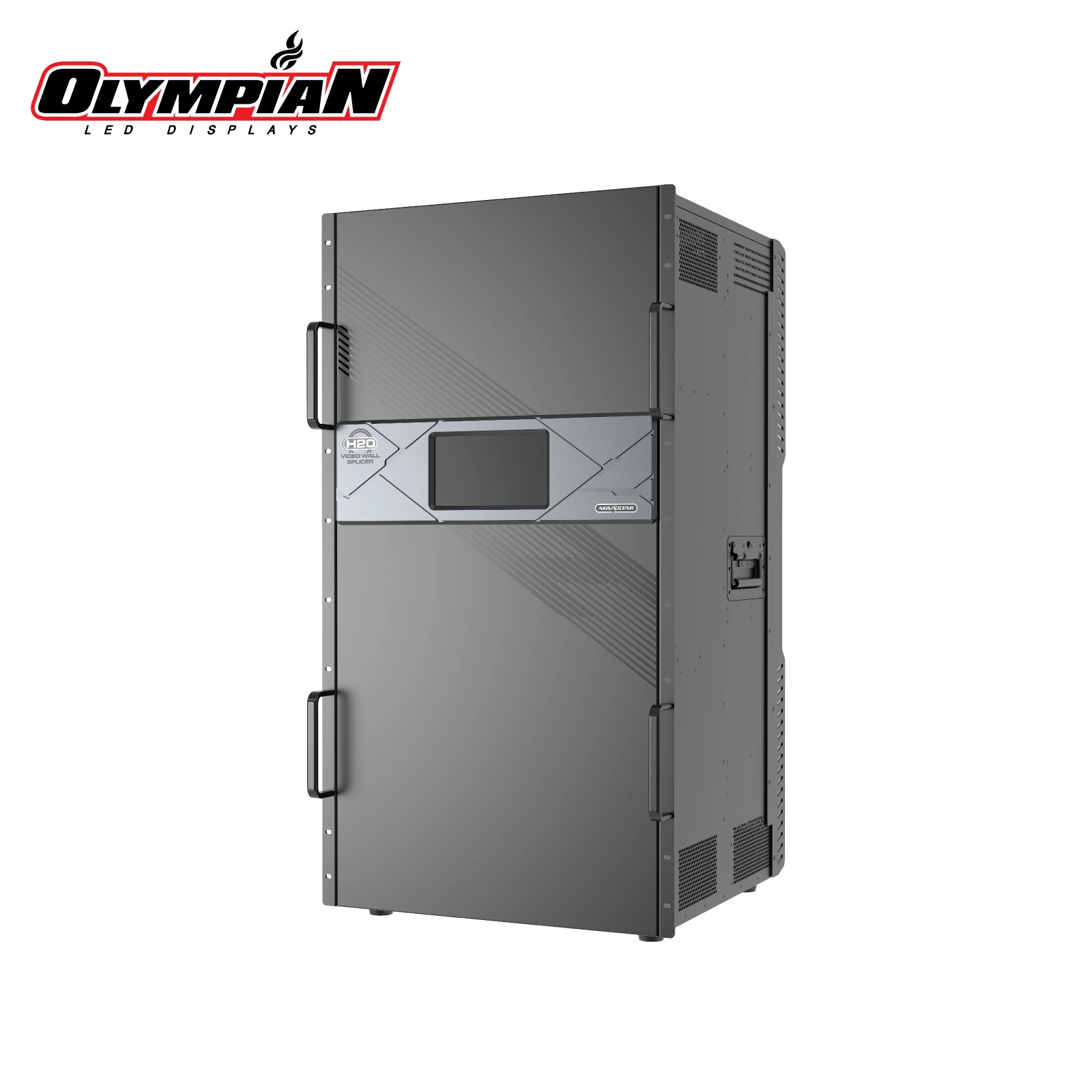

The H20 is the maximum capacity modular video wall splicer from NovaStar's H Series, featuring a 20U chassis with 40 input card slots and 20 output card slots. With support for up to 416 million pixels, 640 outputs, and 320 layers (16 layers per output), the H20 delivers ultimate capacity for the largest video wall installations. The modular design allows maximum customization with input and output cards supporting HDMI, DisplayPort, 3G-SDI, 12G-SDI, fiber, and more. The H20 includes redundant power supply support for mission-critical applications and features HDR, 10G Fiber, and 4K capabilities. Perfect for ultra-large control rooms, broadcast studios, command centers, stadiums, and the most demanding video wall projects requiring maximum pixel capacity and output flexibility.

📋 Pricing Notice: Pricing shown above is MAP pricing. Please contact us if you're a reseller.

You Pay: $12,281

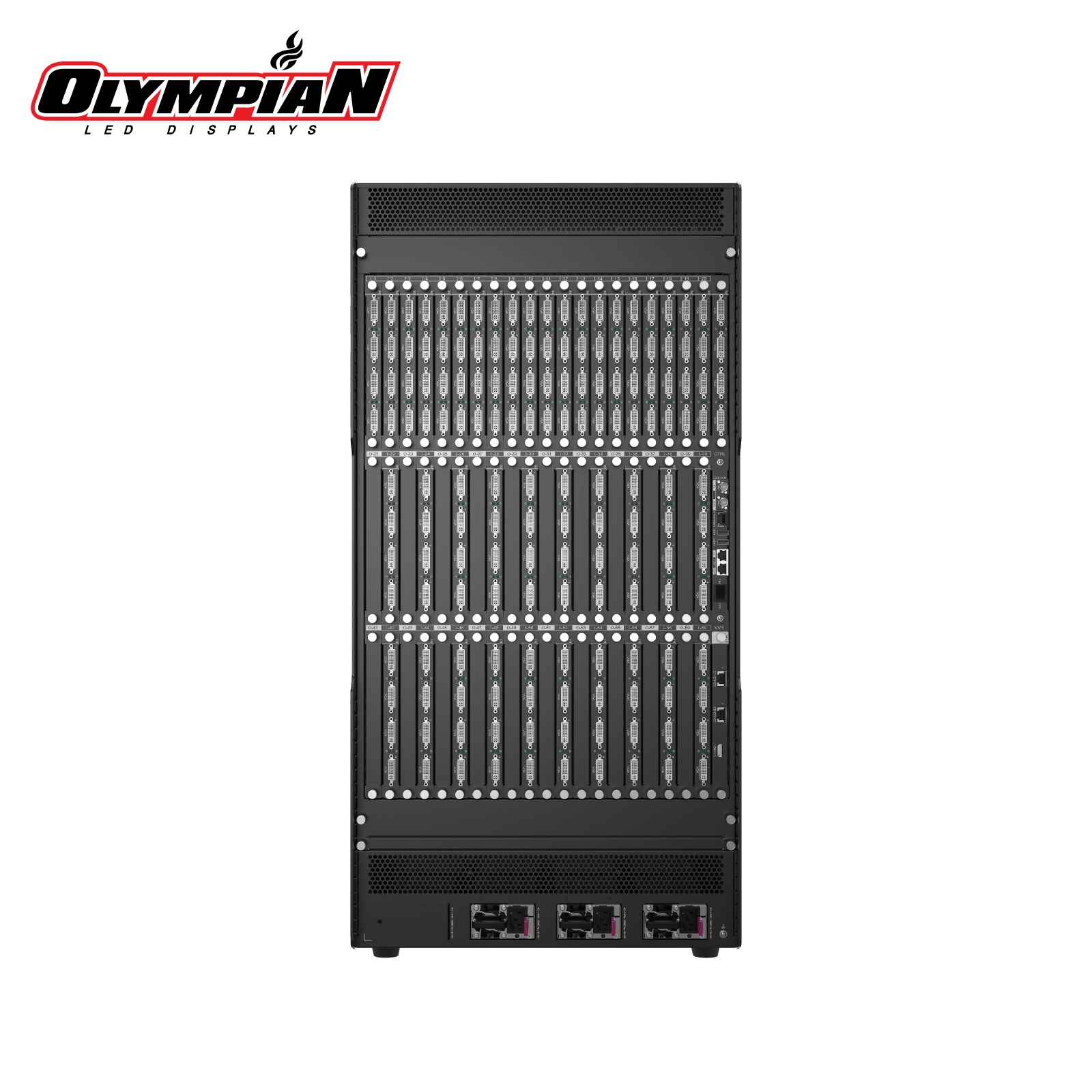

⚙️ Modular Configuration

The H20 features a modular design - configure it with your choice of input and output cards

📥 Input Slots: 40

📤 Output Slots: 20

🎬 Layers per Output: 16

⚡ Redundant Power:Yes

Available Input Cards (19)

H_1x DP1.2 Input Card

1x DisplayPort 1.2

$1,127

H_2x DP1.1 Input Card

2x DisplayPort 1.1

$845

H_1x HDMI2.0 Input Card

1x HDMI 2.0

$1,127

H_2x HDMI2.0 Input Card

2x HDMI 2.0

$1,644

H_4x HDMI Input Card

4x HDMI 1.3 (or 2x HDMI 1.4)

$845

H_1xHDMI2.0+1xDP1.2 Input Card

1x HDMI 2.0 + 1x DisplayPort 1.2

$1,798

H_2xHDMI2.0+2xDP1.2 Input Card

2x HDMI 2.0 + 2x DisplayPort 1.2

$2,320

H_1xHDMI2.1+1xDP1.4 (8K@30Hz) Input Card

1x HDMI 2.1 + 1x DisplayPort 1.4 (8K@30Hz)

$3,184

H_1x 12G SDI Input Card

1x 12G-SDI

$1,825

H_4x 3G SDI Input Card

4x 3G-SDI

$1,644

H_4x DVI Input Card

4x DVI

$845

H_4x HDBaseT Input Card

4x HDBaseT

$1,759

H_1x NDI Input Card

1x NDI

$1,399

H_4x Fiber Input Card

4x 10G Fiber (OPT)

$2,999

H_1xST2110 Input Card

1x SMPTE ST 2110 (25G Fiber)

$3,999

H_2x IP Input Card

2x IP Streams (RTSP, GB28181, ONVIF)

$1,479

H_STD I/O Card

Standard I/O Control Card with comprehensive communication and control interfaces including COM ports, Ethernet, GPIO, relay outputs, and infrared control. This versatile card can be installed into the input card slots to provide RS422/RS485/RS232 serial communication, network connectivity, programmable I/O, relay switching, and infrared device control capabilities.

$649

H_2×Audio input +2×Audio Output Card

2x Audio Input + 2x Audio Output

$854

H_2xRJ45+1xHDMI1.3 Preview Card (MVR)

2x RJ45 + 1x HDMI 1.3 Multi-Viewer Preview

$1,233

Available Output Cards (6)

H_16xRJ45+2xFiber Output Card

16x Gigabit Ethernet + 2x 10G Fiber output card providing 16 total outputs. Each fiber port equals 8 Ethernet ports, supporting up to 10.4 million pixels.

$1,644

H_20xRJ45 Output Card

20x Gigabit Ethernet output card providing 20 outputs, supporting up to 13 million pixels. Pure Ethernet solution for local connections.

$1,703

H_4x Fiber Output Card

4x 10G Fiber output card, each fiber port equals 8 Ethernet ports (32 total Ethernet equivalents), supporting up to 20.8 million pixels.

$3,218

H_1 HDMI2.0 Output Card

1x HDMI 2.0

$1,127

H_4x HDMI Output Card

4x HDMI

$915

H_4 HDBaseT Output Card

4x HDBaseT

$1,759

Technical Specifications

Model Specifications Breakdown

Specification	H20
Rack Unit	20U
Max. Input Cards	40
Max. Input Channels	160
Max. Output Cards	20
Max. Outputs	H_16xRJ45+2xFiber 320 outputs H_20xRJ45 400 outputs H_4xFiber 80 outputs (640 Ethernet equivalents)
Max. Loading Capacity	H_16xRJ45+2xFiber 208 million pixels H_20xRJ45 260 million pixels H_4xFiber 416 million pixels
Max. Layers	320 layers (Up to 16 layers per card)

📊 HDMI 2.1 Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 8192×4320@30Hz
	RGB	4:4:4	8bit	30
	YCbCr	4:4:4	8bit	30
	YCbCr	4:2:2	8bit	30
	RGB	4:4:4	10bit	30
	YCbCr	4:4:4	10bit	30
	YCbCr	4:2:2	10bit	30

📊 HDMI 2.0 Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 4096×2160@60Hz
	RGB	4:4:4	8bit	60
	YCbCr	4:4:4	8bit	60
	YCbCr	4:2:2	8bit	60
— 4096×2160@30Hz
	RGB	4:4:4	10bit	30
	YCbCr	4:4:4	10bit	30
— 4096×2160@60Hz
	YCbCr	4:2:2	10bit	60

📊 DP 1.4 Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 7680×4320@30Hz
	RGB	4:4:4	8bit	30
	YCbCr	4:4:4	8bit	30
— 8192×4320@30Hz
	YCbCr	4:2:2	8bit	30
	YCbCr	4:2:2	10bit	30
— 7680×4320@24Hz
	RGB	4:4:4	10bit	24
	YCbCr	4:4:4	10bit	24

📊 DP 1.2 Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 4096×2160@60Hz
	RGB	4:4:4	8bit	60
	YCbCr	4:4:4	8bit	60
	YCbCr	4:2:2	8bit	60
— 4096×2160@30Hz
	RGB	4:4:4	10bit	30
	YCbCr	4:4:4	10bit	30
— 4096×2160@60Hz
	YCbCr	4:2:2	10bit	60

📊 HDMI 1.4 / DP 1.1 Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 4096×1080@60Hz
	RGB	4:4:4	8bit	60
	YCbCr	4:4:4	8bit	60
	YCbCr	4:2:2	8bit	60
— 2048×1152@60Hz
	RGB	4:4:4	10bit	60
	YCbCr	4:4:4	10bit	60
— 4096×1080@60Hz
	YCbCr	4:2:2	10bit	60

📊 HDMI 1.3 Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 2048×1152@60Hz
	RGB	4:4:4	8bit	60
	YCbCr	4:4:4	8bit	60
	YCbCr	4:2:2	8bit	60
	RGB	4:4:4	10bit	60
	YCbCr	4:4:4	10bit	60
	YCbCr	4:2:2	10bit	60

📊 NDI Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 4096×2160@60Hz
	YCbCr	4:4:4	8bit	60
	YCbCr	4:4:0	8bit	60

📊 ST 2110 (25G OPT port) Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 4096×2160@60Hz
	RGB	4:4:4	8bit	60
	YCbCr	4:4:4	8bit	60
	YCbCr	4:2:2	8bit	60
	RGB	4:4:4	10bit	60
	YCbCr	4:4:4	10bit	60
	YCbCr	4:2:2	10bit	60

📊 12G-SDI Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 4096×2160@60Hz
	YCbCr	4:2:2	8bit/10bit/12bit	60

📊 3G-SDI Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 1920×1080@60Hz
	YCbCr	4:2:2	8bit/10bit	60

📊 DL-DVI Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 3840×1080@60Hz
	RGB	4:4:4	8bit	60

📊 SL-DVI Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 2048×1152@60Hz
	RGB	4:4:4	8bit	60

📊 VGA Resolution & Format Capabilities

Resolution	Color Space	Sampling	Bit Depth	Supported Frame Rates (Hz)
— 1920×1080@60Hz
	RGB	4:4:4	8bit	60

Physical Specifications

Packing box

775 mm × 675 mm × 1065 mm (30.5" × 26.6" × 41.9")

✨ Key Features

HDR
10G Fiber
4K

Software

Firmware 1.9.9.2

⬇️ Download

Why Choose the H20?

✓ All-in-One Design

Integrated solution saves rack space and simplifies setup

✓ Professional Features

Advanced processing with low latency and pixel-level calibration

✓ Maximum Reliability

Backed by 3-Year NovaStar Warranty plus Olympian LED support

✓ Proven Performance

Trusted by production companies and rental houses nationwide

H Series Comparison

Compare models in the H Series to find your perfect fit:

Model	Input Cards	Output Cards	layers	Loading Capacity (60Hz)	Price	View
H2 Lower Tier	4	2	32 layers	41.6 million pixels	$669	View
H5 Lower Tier	10	3	48 layers	62.4 million pixels	$1,468	View
H9 Lower Tier	15	5	80 layers	104 million pixels	$2,184	View
H9 Enhanced Lower Tier	15	10	160 layers	208 million pixels	$2,972	View
H15 Lower Tier	30	10	160 layers	208 million pixels	$6,438	View
H15 Enhanced Lower Tier	30	16	160 layers	333 million pixels	$8,337	View
H20 You're Here	40	20	320 layers	416 million pixels	$12,281	View

Tip: Select products above to compare detailed specifications side-by-side

Frequently Asked Questions

Q: What warranty is included?

All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.

Q: Do you offer volume pricing?

Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.

Q: Do you have this in stock?

We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.

Q: Can I get NET 30 payment terms?

NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
