NovaStar H9 Enhanced
NovaStar H9 Enhanced

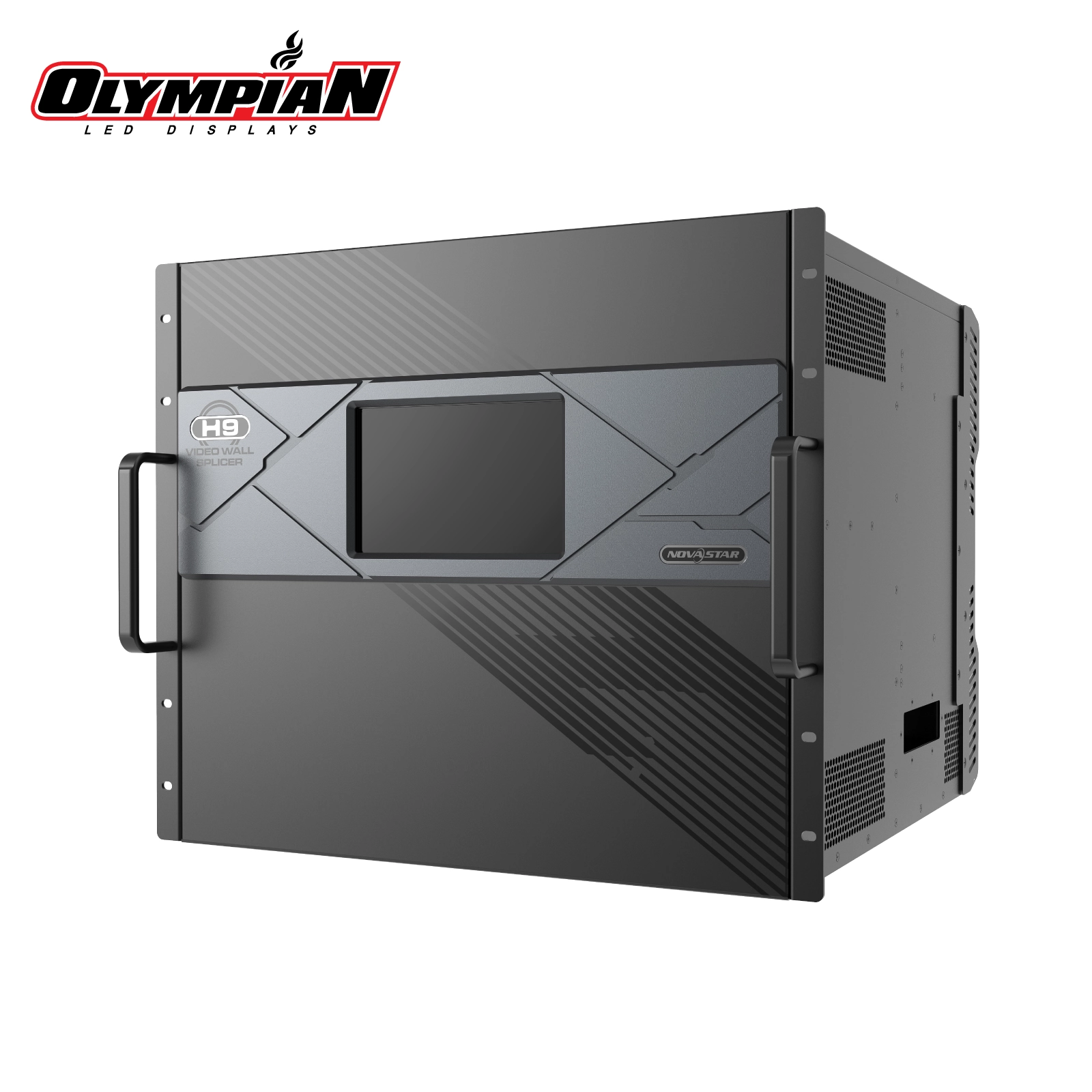

The H9 Enhanced is an enhanced version of the H9 modular video wall splicer from NovaStar's H Series, featuring a 9U chassis with 15 input card slots and 10 output card slots (doubled from the standard H9's 5 output slots). With support for up to 208 million pixels, 320 outputs, and 160 layers (16 layers per output), the H9 Enhanced delivers double the capacity of the standard H9 for the largest video wall installations. The modular design allows extensive customization with input and output cards supporting HDMI, DisplayPort, 3G-SDI, 12G-SDI, fiber, and more. The H9 Enhanced includes redundant power supply support and features HDR, 10G Fiber, and 4K capabilities. Ideal for large-scale video wall installations requiring more output ports and pixel capacity than the standard H9 can provide.
⚙️ Modular Configuration

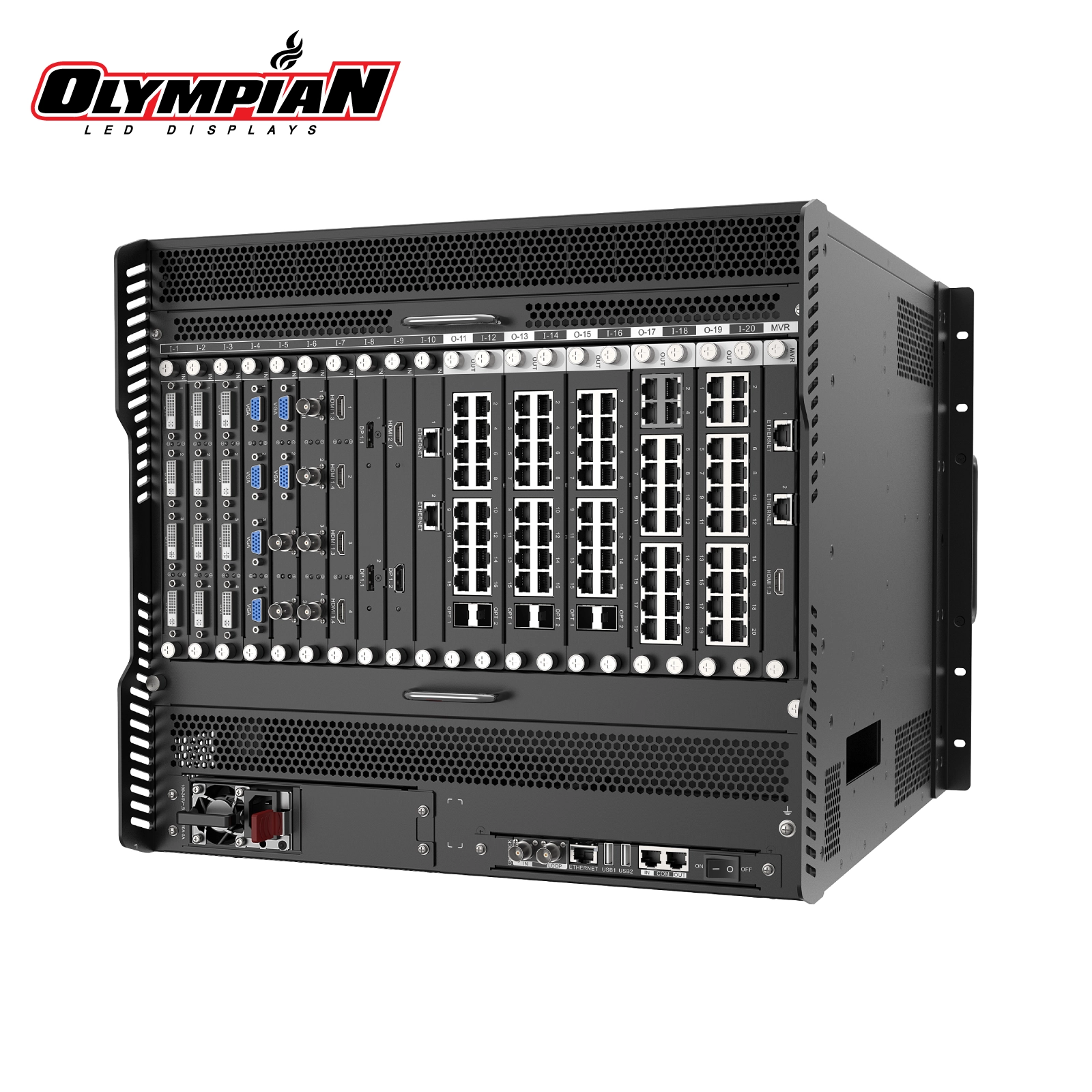

The H9 Enhanced features a modular design - configure it with your choice of input and output cards
Available Input Cards (19)
Available Output Cards (6)
Technical Specifications
Model Specifications Breakdown
| Specification | H9 Enhanced |
|---|---|
| Rack Unit | 9U |
| Max. Input Cards | 15 |
| Max. Input Channels | 60 |
| Max. Output Cards | 10 |
| Max. Outputs | H_16xRJ45+2xFiber 160 outputs H_20xRJ45 200 outputs H_4xFiber 40 outputs (320 Ethernet equivalents) |
| Max. Loading Capacity | H_16xRJ45+2xFiber 104 million pixels H_20xRJ45 130 million pixels H_4xFiber 208 million pixels |
| Max. Layers | 160 layers (Up to 16 layers per card) |
Software
| Firmware 1.9.9.2 | ⬇️ Download |
Why Choose the H9 Enhanced?
✓ All-in-One Design
Integrated solution saves rack space and simplifies setup
✓ Professional Features
Advanced processing with low latency and pixel-level calibration
✓ Maximum Reliability
Backed by 3-Year NovaStar Warranty plus Olympian LED support
✓ Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Why Buy from Olympian LED?
Largest US Distributor
Best pricing guaranteed as the largest NovaStar distributor in America
Ships Same Day
Over $2M in stock at our Florida warehouse for immediate delivery
Flexible Terms
NET 30 payment terms and volume discounts for qualified businesses
Expert Support
Technical support from our team of LED display specialists
Ready to Get Started?
For pricing, availability, or technical questions about the H9 Enhanced, contact Olympian LED today.
