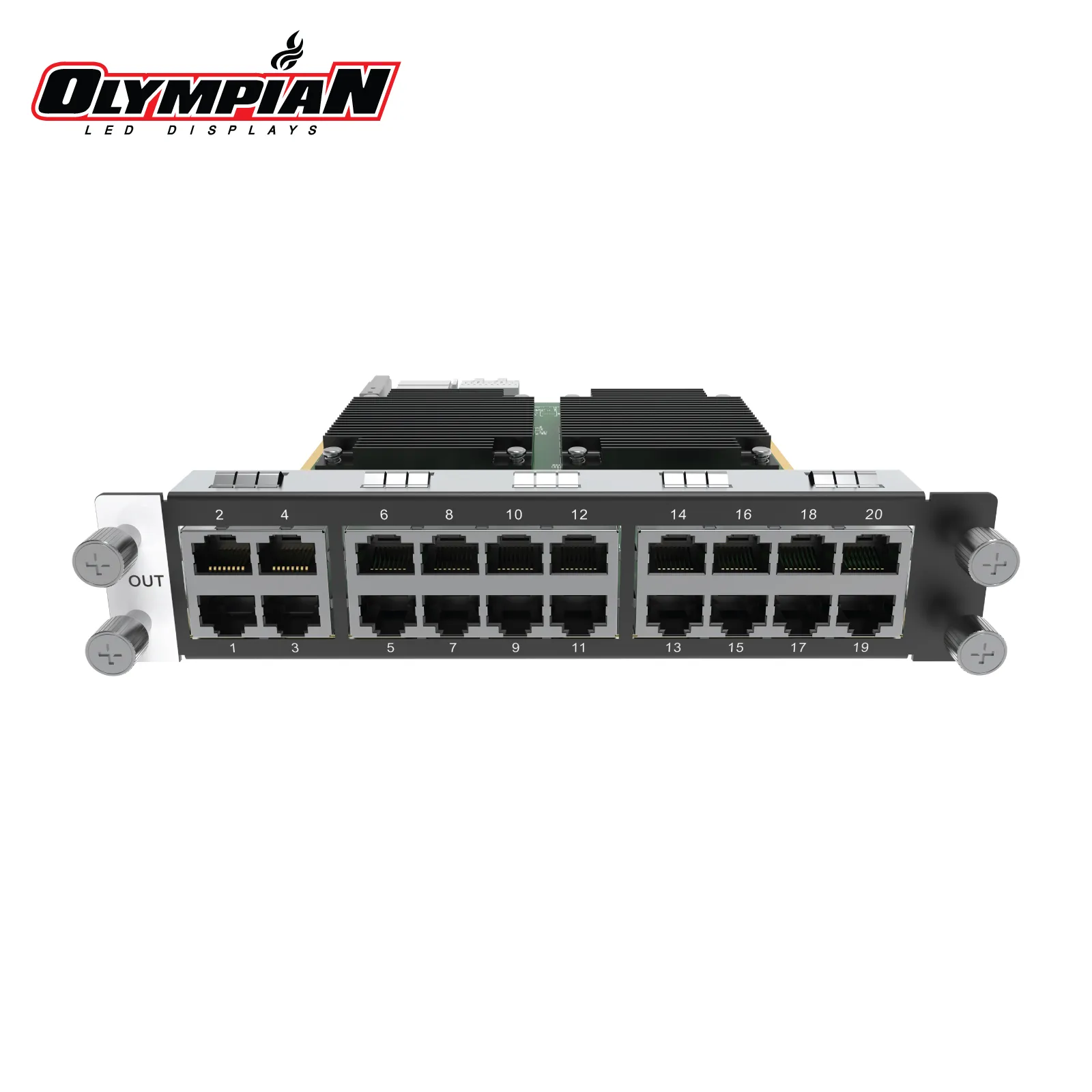

NovaStar H_20xRJ45 Output Card

The H_20xRJ45 Output Card is a dual-slot output card for H Series video wall processors, featuring 20x Gigabit Ethernet ports. This card provides 20 total outputs - the highest Ethernet output count among H Series output cards. With a maximum loading capacity of 13 million pixels (max resolution: 10,752×10,752 pixels), this card delivers 25% more outputs and 25% more pixel capacity than the H_16xRJ45+2xFiber card. Pure Ethernet solution - no fiber ports or fiber modules needed - making it ideal for installations requiring 17-20 Ethernet outputs for local connections only. When used with CVT10-S fiber converters, each fiber port can transmit 10 Ethernet ports (instead of the standard 8), making it perfect for installations needing exactly 10 ports per fiber. All 20 Ethernet ports can be transmitted via 2 fiber ports (10+10) when using CVT10-S converters. Supports backup between Ethernet ports and 144Hz output. Compatible with H2, H5, H9, H15, and H20 video wall processors. Perfect when you need maximum Ethernet outputs without fiber complexity, higher pixel capacity than the 16-port card, simple local Ethernet-only installations, or 10 ports per fiber transmission (via CVT10-S converters).
