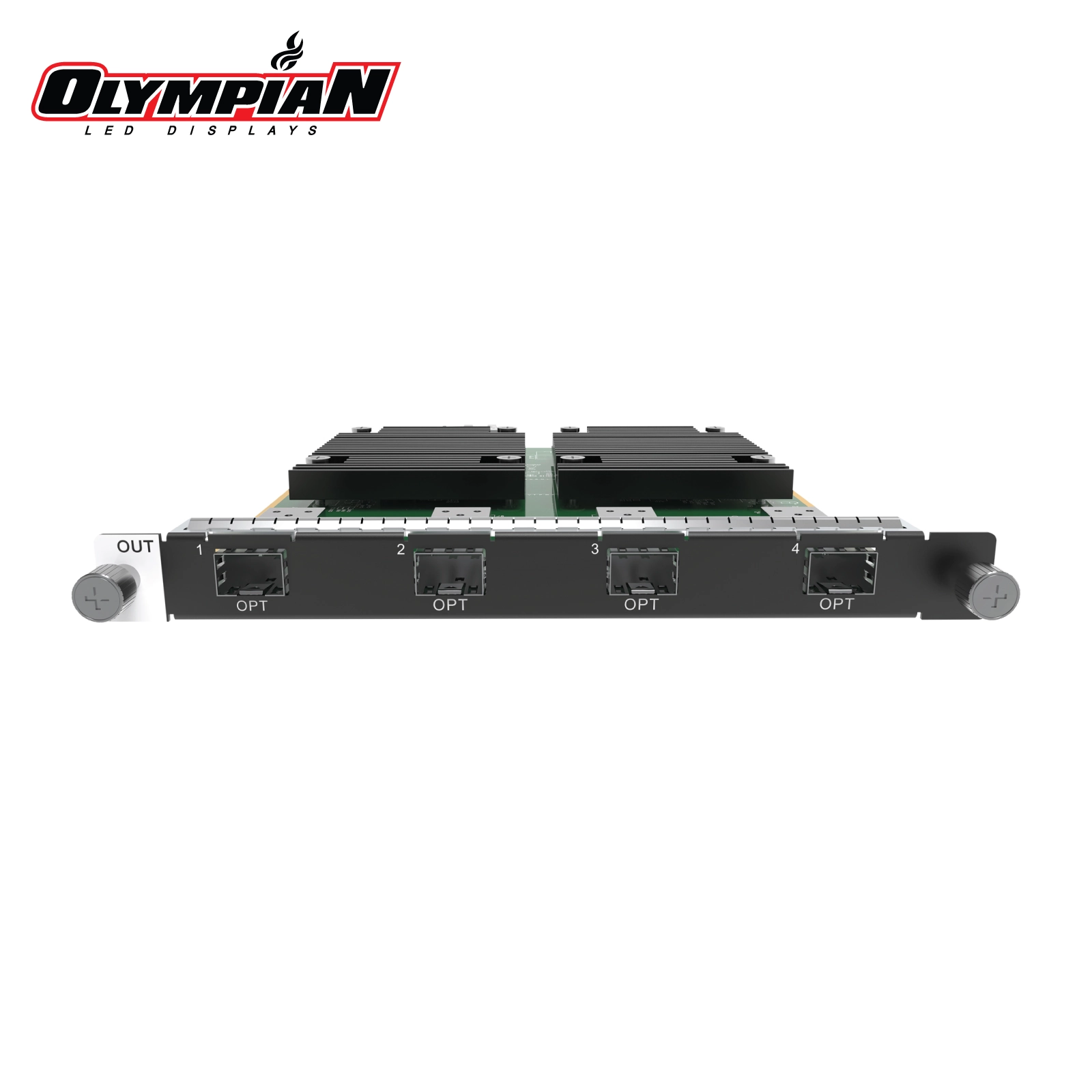

NovaStar H_4x Fiber Output Card
NovaStar H_4x Fiber Output Card
The H_4x Fiber Output Card is a high-capacity output card for H Series video wall processors, featuring 4x 10G fiber ports. Each fiber port provides capacity equivalent to 8 Gigabit Ethernet ports, giving this single-slot card a total of 32 Ethernet-equivalent outputs. With a maximum loading capacity of 20.8 million pixels (max resolution: 16,384Γ16,384 pixels), this card delivers exceptional performance for large-scale LED installations. Supports independent, copy, and backup modes, with 8-bit and 10-bit output support and 144Hz capability. Compatible with H2, H5, H9, H15, and H20 video wall processors. Ideal for installations requiring long-distance fiber transmission (up to 10km with single-mode fiber, 300m with multi-mode fiber).

Technical Specifications
Video Processing
| layers | Up to 16x 2K layers per card (not per output) |
| Maximum Pixels | 20.8 million pixels |
- 4x 10G OPT ports
- Max loading capacity: 20,800,000 pixels (max. width: 16,384 pixels, max. height: 16,384 pixels)
- Layer capacity: A single card supports 16x 2K layers, 8x DL layers, 4x 4K layers or 2x 8K layers. This limit is PER CARD, not per output fiber/port.
- Independent, copy and backup modes supported
- SM and MM optical modules supported (10 km and 300 m transmission respectively)
- Supports 8-bit and 10-bit outputs
- Supports 144Hz output
- The screen loaded by this card does not support fade transition effect
- Optical module supports SFP+ encapsulation
Connectors
Independent Mode
- Description: Four OPT ports all used for output with same loading capacity
Copy Mode
- Description: OPT 1 and OPT 2 for main output, OPT 3 copies OPT 1, OPT 4 copies OPT 2
Backup Mode
- Description: OPT 1 and OPT 2 for main output, OPT 3 backs up OPT 1, OPT 4 backs up OPT 2
Supported Optical Modules
Output Connectivity
| Fiber Output | 4x 10G Fiber |
