NovaStar MCTRL4K
NovaStar MCTRL4K

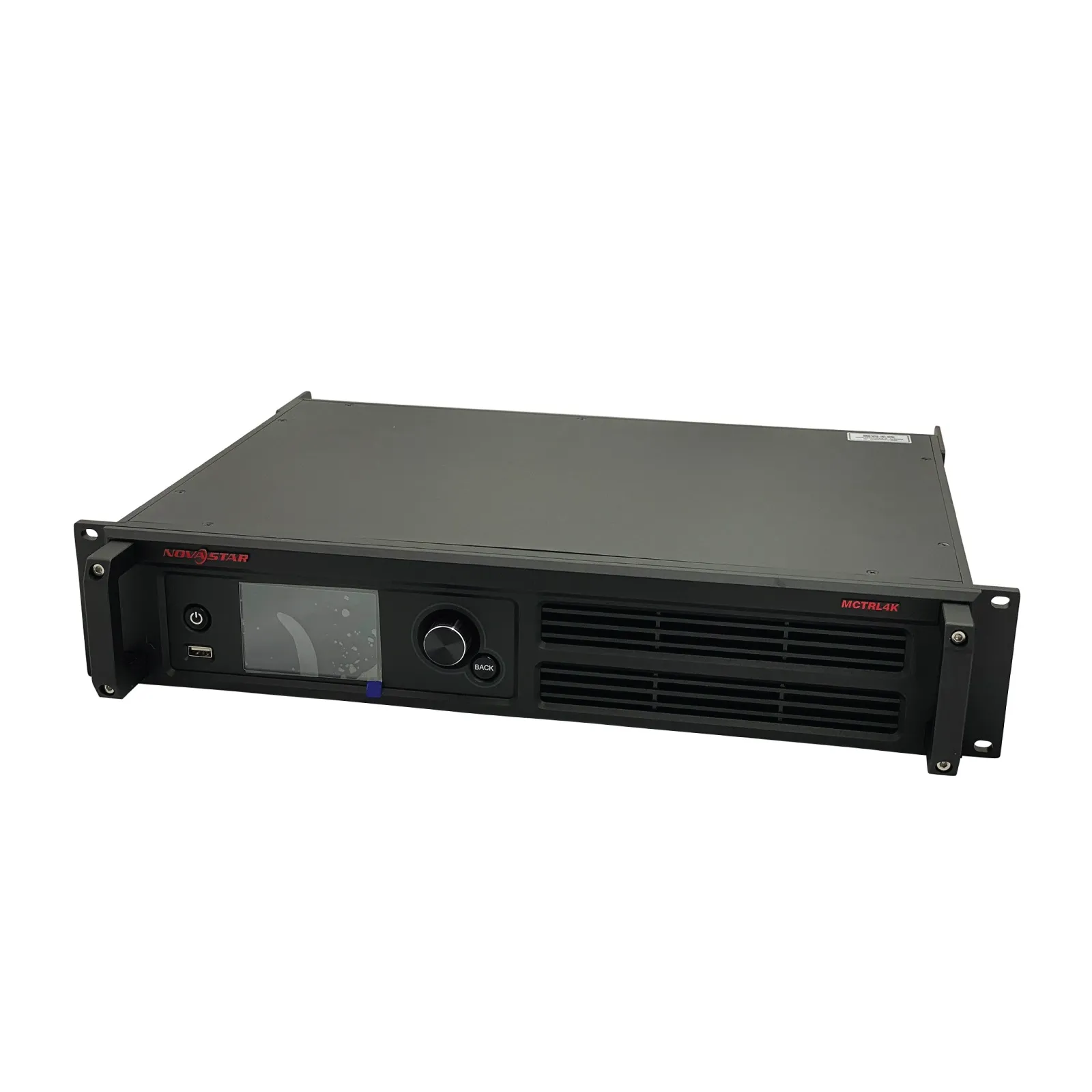

The MCTRL4K is a high-performance LED display controller designed for 4K and ultra-high-resolution applications. With a loading capacity of up to 4096×2160@60Hz (8.8 million pixels), it supports any custom resolutions with a width or height up to 7680 pixels, meeting the on-site configuration requirements of ultra-long or ultra-wide LED displays. The MCTRL4K comes with many industry-leading technologies such as HDR support, individual gamma adjustment for RGB channels, low latency processing, 3D capability, and pixel-level brightness and chroma calibration. These technologies improve the display brightness, grayscale, and color performance, presenting more uniform, detailed, and vivid images. The MCTRL4K is stable, reliable, and powerful, dedicated to providing users with an ultimate visual experience. Ideal for broadcast facilities, command centers, large-scale video walls, and professional installations requiring the highest image quality.
Key Highlights
Key Features
HDR
3D
Genlock
4K
Low Latency
Color Calibration
12-bit
Pixel-Level Brightness and Chroma Calibration
Technical Specifications
Video Processing
| Maximum Pixels | 8.9 million pixels |
| Max Input Resolution | 4096×2160@60HZ |

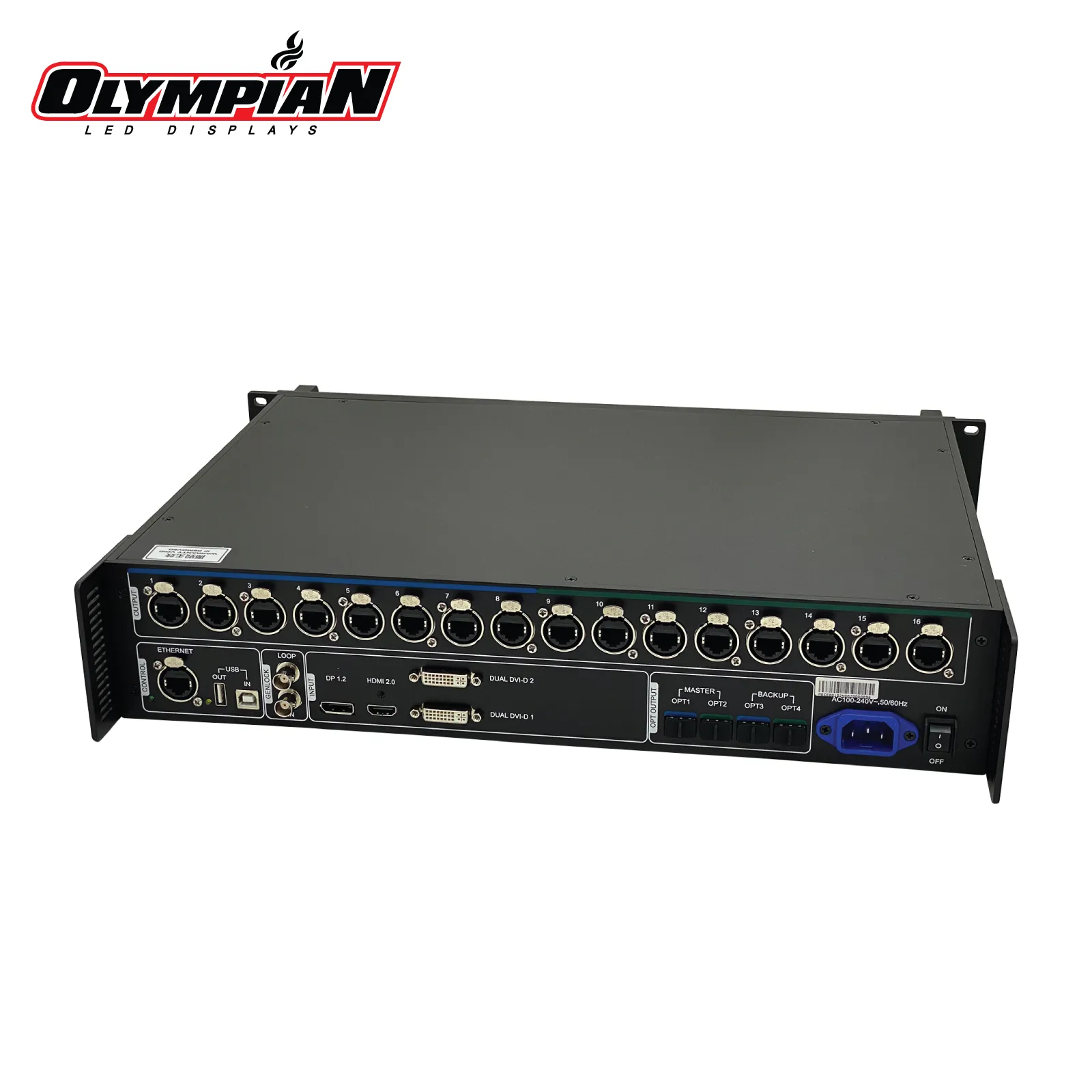

Input Connectors
| DISPLAYPORT | 1x DisplayPort 1.2 |
| HDMI | 1x HDMI 2.0 |
| DVI | 2x DL-DVI |
Output Connectivity
| Ethernet Output | 16x Neutrik Gigabit Ethernet |
| Fiber Output | 4x Fiber |
Physical Specifications
| Packing box | 555 mm × 445 mm × 220 mm (21.9" × 17.5" × 8.7") |
Features
Software
| Firmware 1.2.9 | ⬇️ Download |
| NovaLCT 5.8.0 | ⬇️ Windows |
| Compatible Software | NovaLCT |
Why Choose the MCTRL4K?
✓ All-in-One Design
Integrated solution saves rack space and simplifies setup
✓ Professional Features
Advanced processing with low latency and pixel-level calibration
✓ Maximum Reliability
Backed by 3-Year NovaStar Warranty plus Olympian LED support
✓ Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What size LED wall can the MCTRL4K drive?
The MCTRL4K can drive 8.9 million pixels with 16 Ethernet outputs, suitable for medium to large-scale LED displays.
Q: Is the MCTRL4K suitable for rental applications?
Absolutely. The MCTRL4K is designed for professional rental, staging, and touring applications where reliability is critical.
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
