NovaStar MRV216
NovaStar MRV216

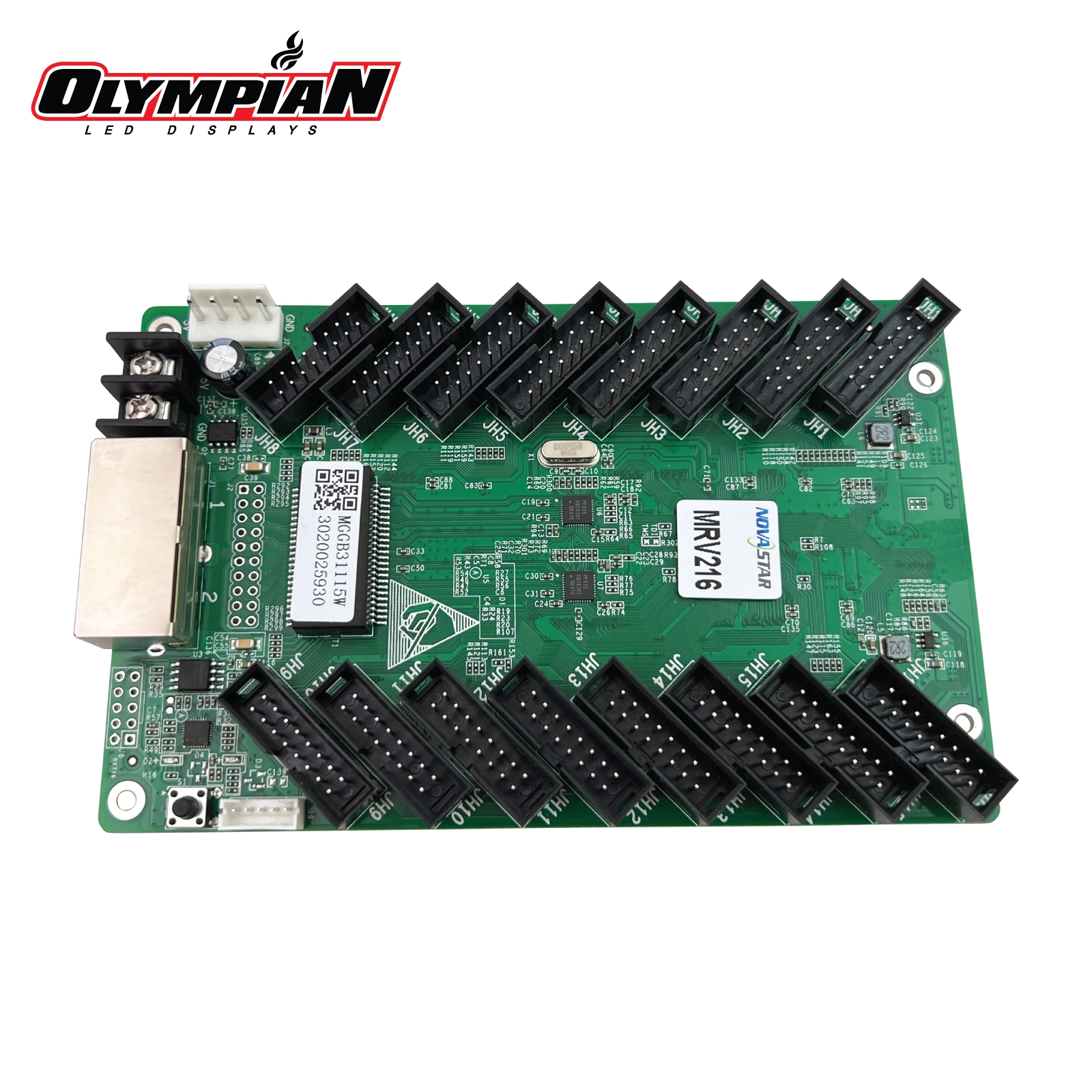

The MRV216 is a general receiving card developed by NovaStar. A single MRV216 supports resolutions up to 512×384@60Hz (NovaLCT V5.3.0 or later required). Supporting various functions such as the brightness calibration, quick adjustment of dark or bright lines, 3D, and individual gamma adjustment for RGB, the MRV216 can significantly improve the display effect and user experience. The MRV216 uses 16 standard HUB75E connectors for communication, resulting in high stability. It supports up to 32 groups of parallel RGB data and is suitable for various on-site setups.
Key Highlights
Key Features
3D
Backup
Brightness Calibration
Technical Specifications
Video Processing
| Maximum Pixels | 196.6K pixels |
| Maximum Width | 512 pixels |
| Maximum Height | 384 pixels |
🔌 HUB75E Connector Pinouts
| Description | Pin | Signal | Signal | Pin | Description |
|---|---|---|---|---|---|
| Red data line 1 | 1 | R1 | G1 | 2 | Green data line 1 |
| Blue data line 1 | 3 | B1 | GND | 4 | Ground |
| Red data line 2 | 5 | R2 | G2 | 6 | Green data line 2 |
| Blue data line 2 | 7 | B2 | E1 | 8 | Address line E1 |
| Address line A1 | 9 | A1 | B1 | 10 | Address line B1 |
| Address line C1 | 11 | C1 | D1 | 12 | Address line D1 |
| Clock line | 13 | CLK | LAT | 14 | Latch line |
| Output enable line | 15 | OE | GND | 16 | Ground |
Enhanced 16-pin HUB75E connector for LED display data transmission. Features 5 address lines (E, A, B, C, D) supporting up to 1/32 scan mode (64 rows total). Pin 8 serves as an additional address line E, enabling higher resolution panels and more complex scan modes. The key difference from HUB75 is the additional E address line, doubling the addressable rows.
Physical Specifications
| Power Input | DC 3.8 V to 5.5 V, 0.5 A, 2.5 W |
| Dimensions | 145.6 mm × 91.5 mm × 18.4 mm (5.7" × 3.6" × 0.7") |
| Net weight | 100.1 g |
Features
Software
| NovaLCT 5.8.0 | ⬇️ Windows |
| Compatible Software | NovaLCT |
Why Choose the MRV216?
✓ High Performance
Optimized for high-resolution displays with pixel-level calibration
✓ Wide Compatibility
Works seamlessly with NovaStar controllers and processors
✓ Easy Configuration
Simple setup with NovaLCT software and intuitive controls
✓ Reliable Operation
Backed by 3-Year NovaStar Warranty for dependable performance
