NovaStar MRV412
NovaStar MRV412

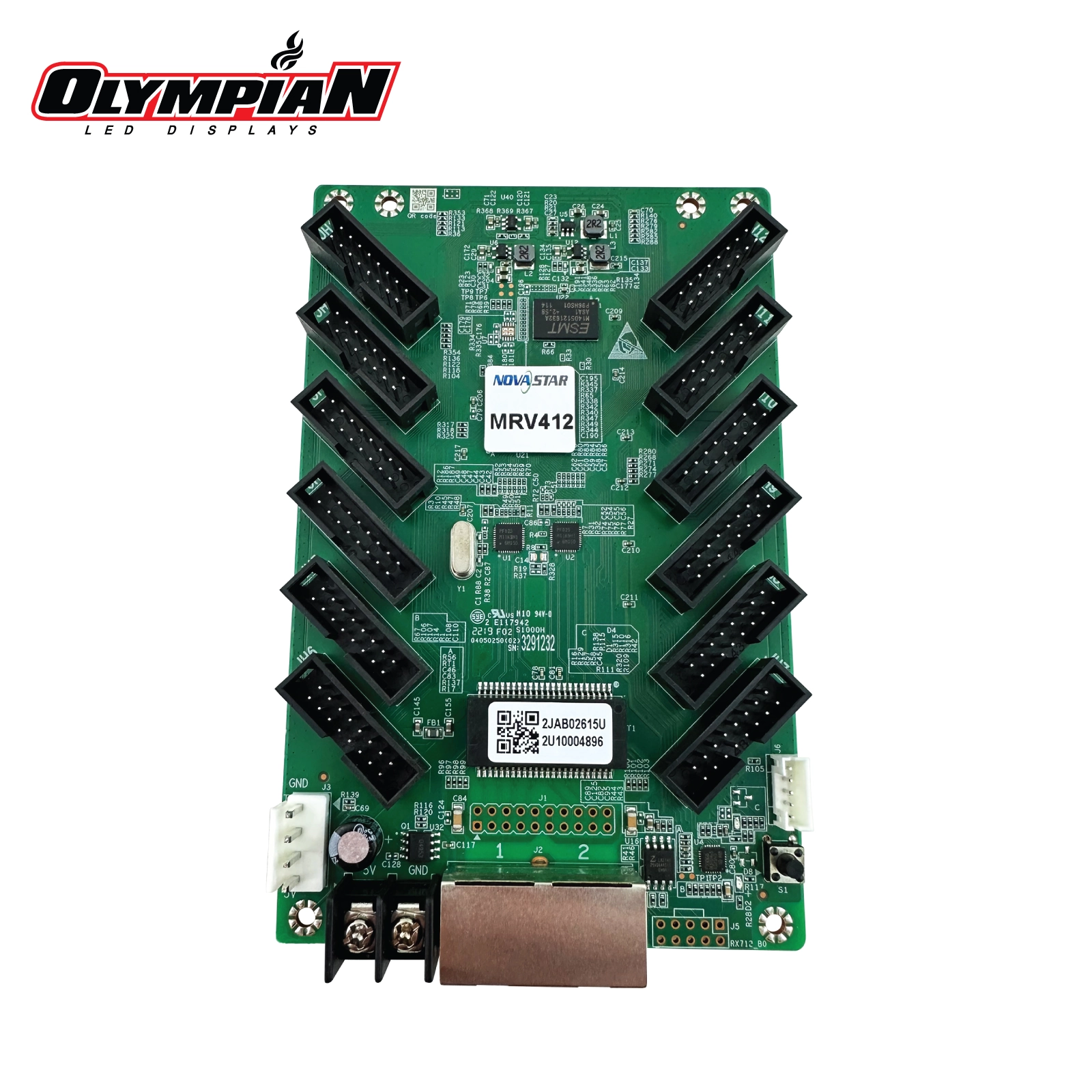

The MRV412 is a general receiving card. For PWM driver ICs, a single MRV412 supports resolutions up to 512×512@60Hz. For common driver ICs, a single MRV412 supports resolutions up to 512×384@60Hz. Supporting various functions such as color management, 18bit+, pixel level brightness and chroma calibration, 3D, quick seam correction, image rotation in 90° increments, and individual gamma adjustment for RGB, the MRV412 can significantly improve the display effect and user experience. The MRV412 uses 12 standard HUB75E connectors for communication. It supports up to 24 groups of parallel RGB data. On-site setup, operation, and maintenance were all taken into account when designing the hardware and software of the MRV412, allowing for an easier setup, more stable operation, and more efficient maintenance.
Key Highlights
Key Features
3D
Color Calibration
Color Management
Pixel-Level Brightness and Chroma Calibration
Quick Seam Correction
Image Rotation
Individual Gamma Adjustment
Technical Specifications
Video Processing
| Maximum Pixels | 262.1K pixels |
| Maximum Width | 512 |
| Maximum Height | 512 |
🔌 HUB75E Connector Pinouts
| Description | Pin | Signal | Signal | Pin | Description |
|---|---|---|---|---|---|
| Red data line 1 | 1 | R1 | G1 | 2 | Green data line 1 |
| Blue data line 1 | 3 | B1 | GND | 4 | Ground |
| Red data line 2 | 5 | R2 | G2 | 6 | Green data line 2 |
| Blue data line 2 | 7 | B2 | E1 | 8 | Address line E1 |
| Address line A1 | 9 | A1 | B1 | 10 | Address line B1 |
| Address line C1 | 11 | C1 | D1 | 12 | Address line D1 |
| Clock line | 13 | CLK | LAT | 14 | Latch line |
| Output enable line | 15 | OE | GND | 16 | Ground |
Enhanced 16-pin HUB75E connector for LED display data transmission. Features 5 address lines (E, A, B, C, D) supporting up to 1/32 scan mode (64 rows total). Pin 8 serves as an additional address line E, enabling higher resolution panels and more complex scan modes. The key difference from HUB75 is the additional E address line, doubling the addressable rows.
Physical Specifications
| Power Input | DC 3.8 V to 5.5 V, 0.5 A, 2.5 W |
| Dimensions | 145.6 mm × 91.5 mm × 19.3 mm (5.7" × 3.6" × 0.8") |
| Net weight | 96.0 g |
Features
Software
| NovaLCT 5.8.0 | ⬇️ Windows |
| Compatible Software | NovaLCT |
Why Choose the MRV412?
✓ High Performance
Optimized for high-resolution displays with pixel-level calibration
✓ Wide Compatibility
Works seamlessly with NovaStar controllers and processors
✓ Easy Configuration
Simple setup with NovaLCT software and intuitive controls
✓ Reliable Operation
Backed by 3-Year NovaStar Warranty for dependable performance
