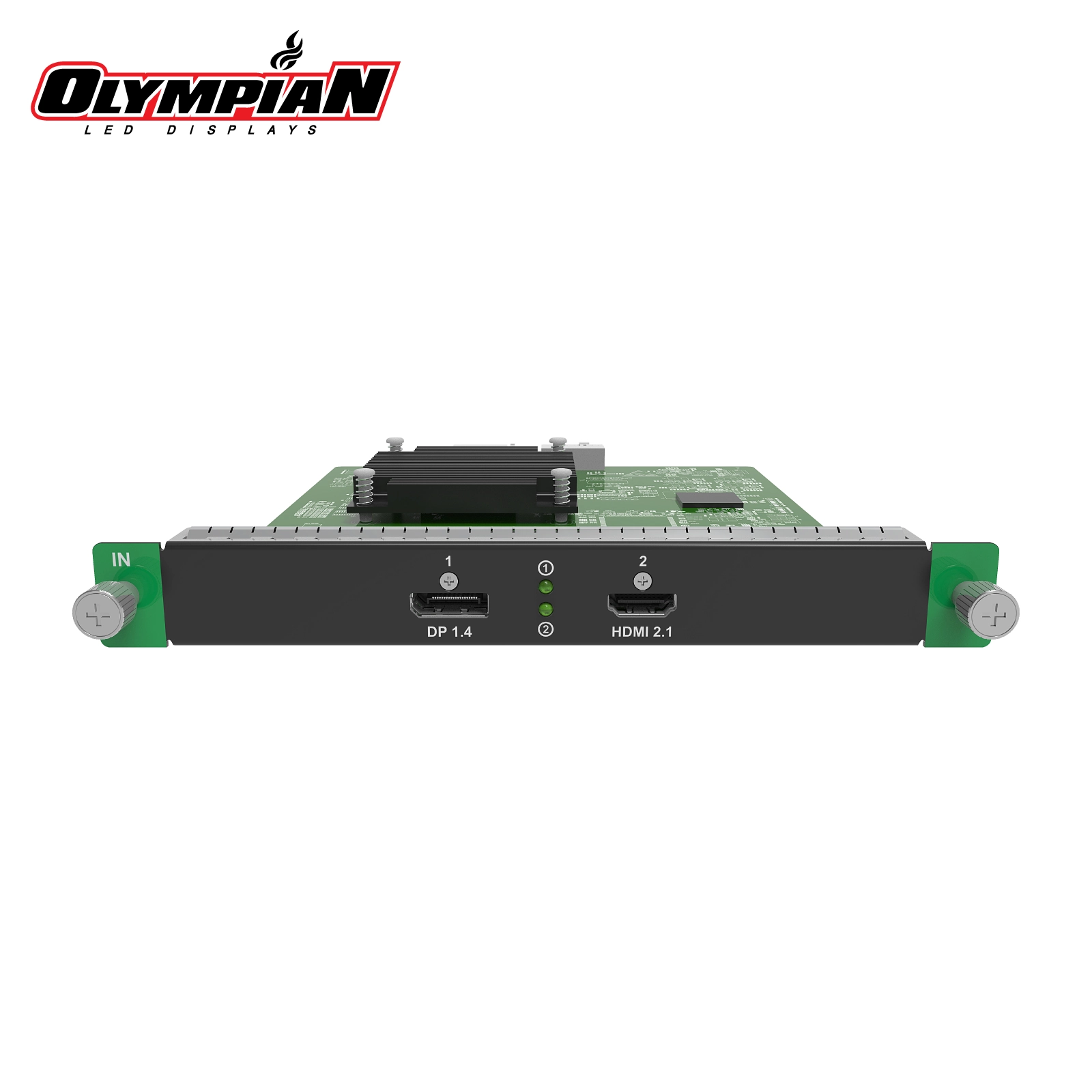

NovaStar MX_1xDP1.4+1xHDMI2.1 (8K@30Hz) Input Card
NovaStar MX_1xDP1.4+1xHDMI2.1 (8K@30Hz) Input Card
MX Series 1x DisplayPort 1.4 + 1x HDMI 2.1 input card supporting up to 8K@30Hz per input. Compatible with MX2000 Pro and MX6000 Pro controllers.
Technical Specifications
📊 DP 1.4 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 8K — 8192×4320 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 24/25 (12bit not supported) | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25 | |
| 8K — 7680×4320 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 10bit | 24 (12bit not supported) | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30 | |
| 5K — 5120×2880 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30/48/50/60 | |
| 4K — 4096×2160 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/75 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75/100 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100 | |
| YCbCr | 4:2:0 | 8/10/12bit | 30/48/50/60 | |
| 4K — 3840×2160 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/75 (75 Hz needs to be forced) | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75/100/120 (75 Hz and above need to be forced) | |
| YCbCr | 4:2:2 | 12bit | 24/25/30/48/50/60/75/100/120 | |
| YCbCr | 4:2:2 | 8/10bit | 24/25/30/48/50/60/75/100/120 | |
| YCbCr | 4:2:0 | 8/10/12bit | 48/50/60 | |
| 2K1K — 2560×1440 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/75/100/120/144 (144Hz needs to be forced) | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/75/100/120/144/240 (144Hz and above need to be forced) | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75/100/120/144/240 (144Hz and above need to be forced) | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:0 | 8/10/12bit | 75/100/120 | |
| 1K — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/75/100/120/144/240 (240Hz needs to be forced) | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/75/100/120/144/240 (240Hz needs to be forced) | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75/100/120/144/240 (240Hz needs to be forced) | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:0 | 8/10/12bit | 120/144 | |
📊 HDMI 2.1 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 8K — 8192×4320 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30 | |
| 8K — 7680×4320 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30 | |
| 5K — 5120×2880 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75 | |
| YCbCr | 4:2:0 | 8/10/12bit | 24/25/30/48/50/60/75 | |
| 4K — 4096×2160 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120 | |
| YCbCr | 4:2:0 | 8/10/12bit | 30/48/50/60/75/100/120 | |
| 4K — 3840×2160 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120 (75 Hz and above need to be forced) | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120 | |
| YCbCr | 4:2:0 | 8/10/12bit | 48/50/60/75/100/120 | |
| 2K1K — 2560×1440 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 (144 Hz and above need to be forced) | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:0 | 8/10/12bit | 75/100/120/144/240 | |
| 1K — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 (240 Hz needs to be forced) | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| YCbCr | 4:2:0 | 8/10/12bit | 120 | |
- Supports HDR10 and complies with SMPTE ST 2084 and SMPTE ST 2086 standards
- Supports HLG (Hybrid Log-Gamma)
- HDCP 2.3 compliant, backwards compatible with HDCP 2.2/HDCP 1.4/HDCP 1.3
- Supports preset resolutions up to 8192×4320 (8K)
- Many high-resolution and high-refresh-rate modes require forced resolution settings
- The table above only displays integer frame rates. Decimal frame rates are also supported
- When using YCbCr 4:2:0 input, all frame rates need to be forced
Connectors
1x DP 1.4 (8K)
- Max Resolution: 8192×4320@25Hz (Forced)
- HDR Support: HDR10 (SMPTE ST 2084, SMPTE ST 2086), HLG
- HDCP: HDCP 2.3 (backwards compatible with HDCP 2.2/1.4/1.3)
1x HDMI 2.1 (8K)
- Max Resolution: 8192×4320@30Hz (Forced)
- HDR Support: HDR10 (SMPTE ST 2084, SMPTE ST 2086), HLG
- HDCP: HDCP 2.3 (backwards compatible with HDCP 2.2/1.4/1.3)
