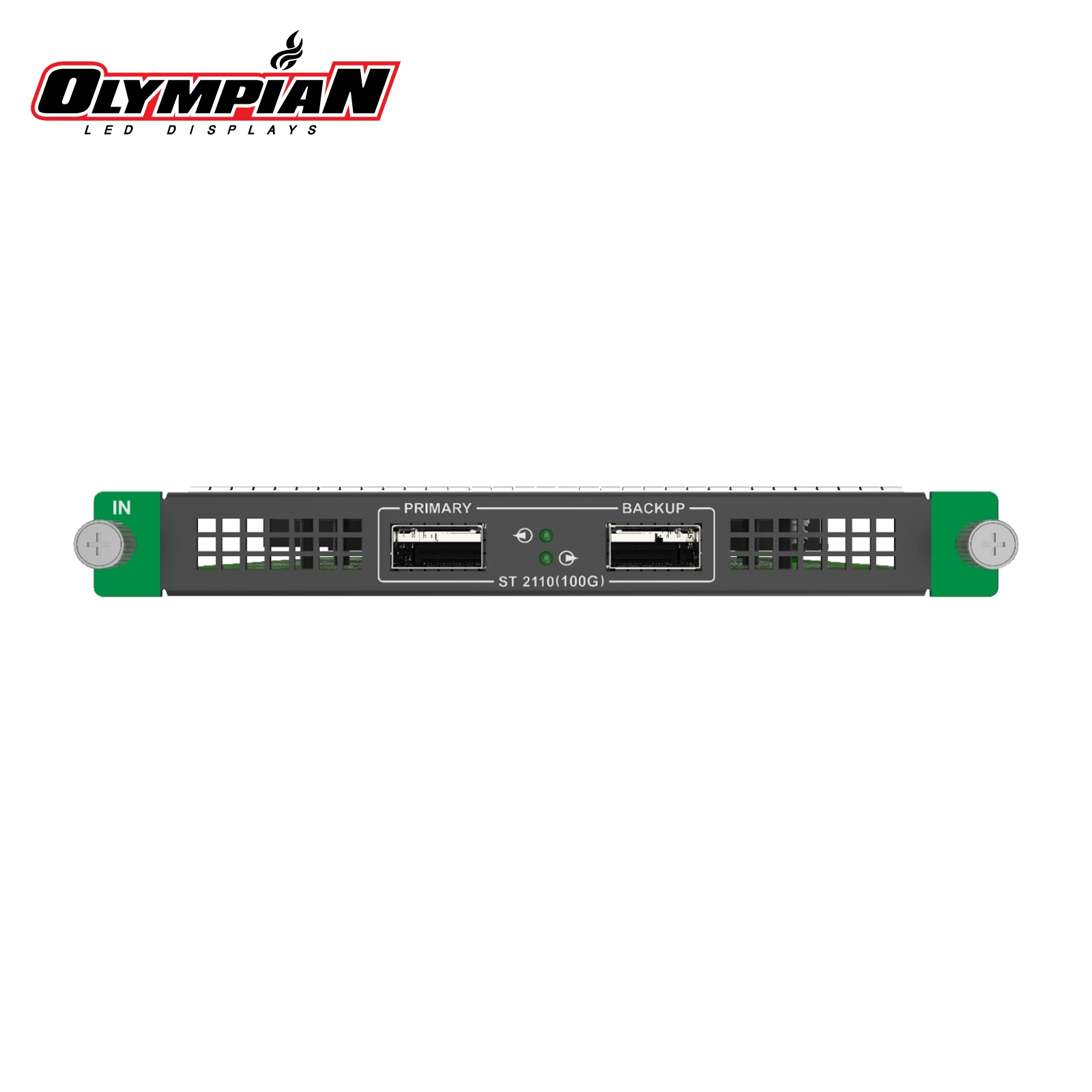

NovaStar MX_1xST2110 (100G) Input Card
NovaStar MX_1xST2110 (100G) Input Card
MX Series 1× ST 2110 (100G) IP input card for uncompressed IP video workflows. Compatible with MX2000 Pro and MX6000 Pro controllers.
Technical Specifications
📊 ST 2110 (100G) - 1x source Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 8K — 8192×4320 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60 | |
| 8K — 7680×4320 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60 | |
| 4K — 4096×2160 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| 4K — 3840×2160 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| 2K1K — 2560×1440 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| 1K — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
📊 ST 2110 (100G) - 4 sources Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60 | |
| 4K — 3840×2160 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60 | |
| 2K1K — 2560×1440 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/100/120/144 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/100/120/144 | |
| 1K — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| 1K — 1280×720 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| Other — 800×600 | ||||
| RGB / YCbCr | 4:4:4 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/100/120/144/240 | |
- Supports SMPTE ST 2110 over 100GbE
- Uncompressed IP video ingest
- Professional broadcast-grade IP connectivity
Connectors
1x 100G Ethernet (QSFP28)
- Max Resolution: Up to 8K depending on stream
