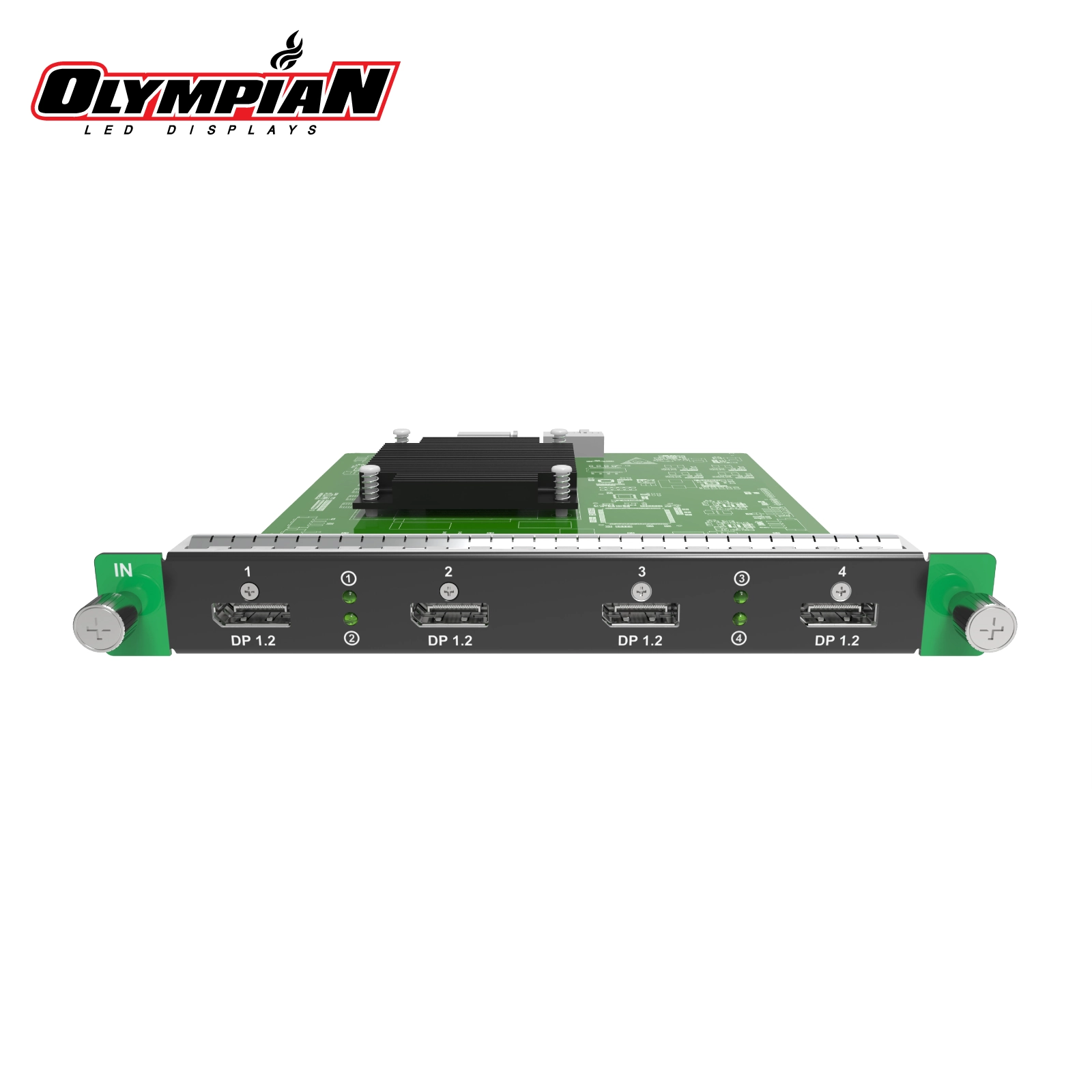

NovaStar MX_4 DP1.2 input Card
NovaStar MX_4 DP1.2 input Card
MX Series 4x DisplayPort 1.2 input card. Compatible with MX2000 Pro and MX6000 Pro controllers.
Technical Specifications
📊 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 (Forced) | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75 | |
| 4K — 3840×2160 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75 | |
| 2K1K — 2560×1440 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/75/100 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/75/100/120 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75/100/120/144 | |
| YCbCr | 4:2:2 | 8/10/12bit | 24/25/30/48/50/60/75/100/120/144 | |
| 1K — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/75/100/120/144 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/75/100/120/144/240 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/75/100/120/144/240 | |
- Supports HDR10 and complies with SMPTE ST 2084 and SMPTE ST 2086 standards
- Supports HLG (Hybrid Log-Gamma)
- HDCP compliant
- Supports preset resolutions up to 4096×2160 (4K)
- Many high-resolution and high-refresh-rate modes require forced resolution settings
Connectors
4x DP 1.2 (4K)
- Max Resolution: 4096×2160@75Hz
- HDR Support: HDR10 (SMPTE ST 2084, SMPTE ST 2086), HLG
- HDCP: HDCP compliant
