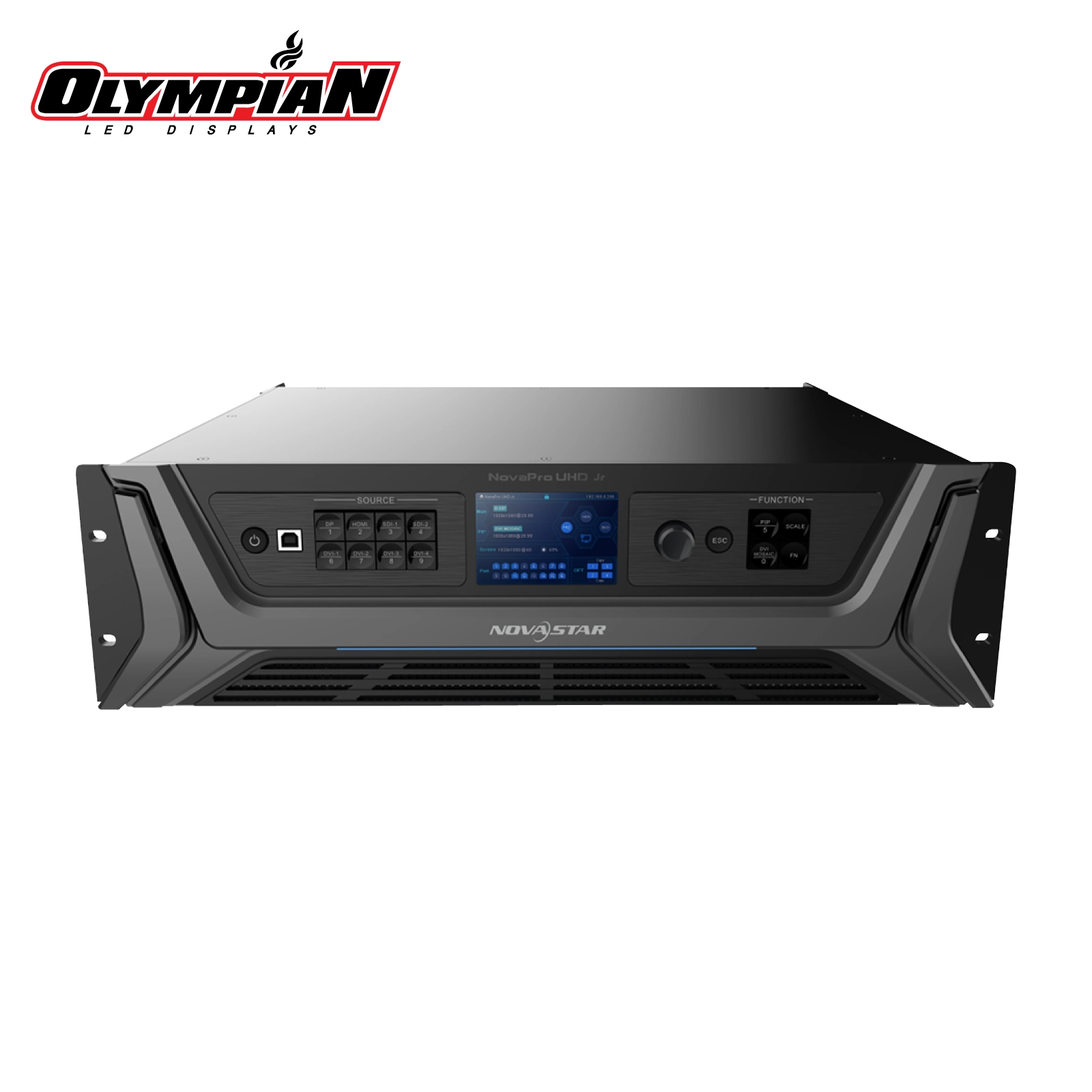

NovaStar NovaPro UHD Jr
NovaStar NovaPro UHD Jr
The NovaPro UHD Jr is a compact high-capacity all-in-one video processor designed for fine-pitch LED displays requiring professional video processing and control capabilities. With a capacity of 10.4 million pixels and maximum dimensions of 16K width and 8K height, the NovaPro UHD Jr can handle large-scale LED installations while maintaining a more compact form factor compared to the full NovaPro UHD. Equipped with 16 Neutrik Gigabit Ethernet ports and 4 fiber outputs, it provides flexible connectivity options for various display configurations. The processor supports 4K×2K@60Hz input resolution through multiple input types including 1x DisplayPort 1.2, 4x DVI (with DVI MOSAIC support for up to 4 inputs), 1x HDMI 2.0 with loop-through, and 2x 12G-SDI with loop-through. It features 3 layers (1x main layer and 2x PIPs with adjustable layer priority) plus 1x OSD, HDR output for enhanced image quality, 3D mode (halves output capacity when enabled), genlock synchronization, and 12-bit color depth processing. The NovaPro UHD Jr operates in two working modes: Video Controller and Fiber Converter. With features like low-latency output (2 frame delay with NovaStar Armor series receiving cards), input source hot backup, Ethernet port backup test, free topology for flexible screen configuration, EDID management, capture function, image mosaic (up to 4 units), V-Can control support, decimal frame rates (23.98/29.97/47.95/59.94/71.93/119.88 Hz), customized BKG settings, personalized image scaling (full screen, pixel to pixel, custom), and 10 user-defined presets, it offers comprehensive control and management for professional LED display applications.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
pitch LED displays.
Key Highlights
Key Features
HDR
3D
Genlock
4K
8K
10G Fiber
Free Layout
Backup
Mosaic
12-bit
Technical Specifications
Video Processing
| layers | 3 layers |
| Maximum Pixels | 10.4 million pixels |
| Maximum Width | 16K (16384 pixels) |
| Maximum Height | 8K (8192 pixels) |
| Max Input Resolution | 4K×2K@60HZ |

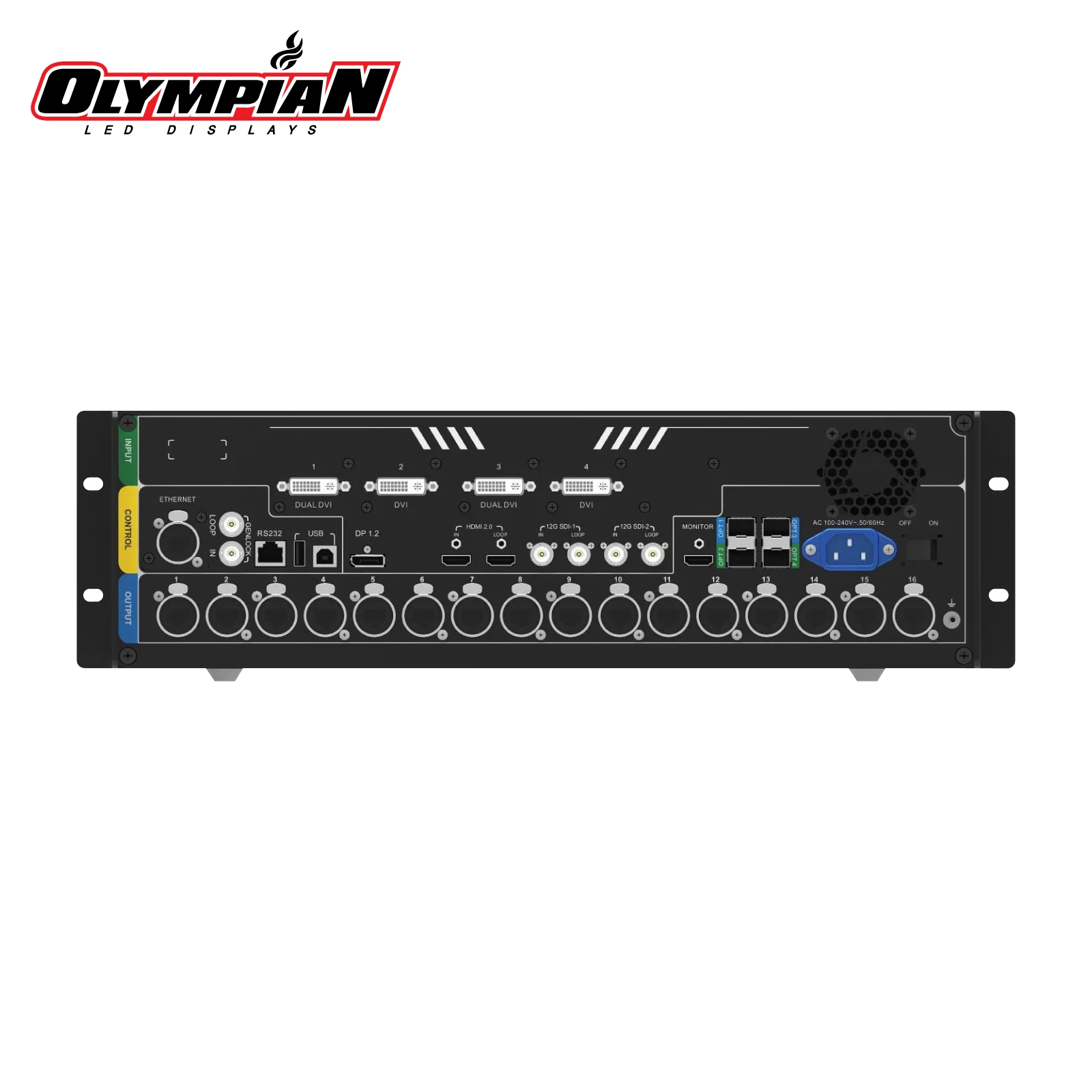

Input Connectors
| DVI | 4x DVI |
| SDI | 2x 12G-SDI |
| DP | 1x DP 1.2 |
| HDMI | 1x HDMI 2.0 |
Input Resolution Capabilities
| DVI | |
| Standard | Single-link mode: 4x DVI up to 2048×1152@60Hz each (DVI MOSAIC). Dual-link mode: DVI 1 & 3 up to 3840×1080@60Hz (DVI 2 & 4 unavailable). Single-link DVI: up to 1920×1080@60Hz. Dual-link DVI: up to 3840×1080@60Hz |
| Max Width | 3840 |
| Max Height | 3840 |
| Notes | HDCP 1.4 compliant. Supports input resolution settings. Does NOT support interlaced signal inputs. 4 DVI inputs can create DVI MOSAIC (single-link) or 2 DVI inputs can create DVI MOSAIC (dual-link). |
| 12G-SDI | |
| Standard | 12G-SDI up to 4096×2160@60Hz |
| Max Width | 8192 |
| Max Height | 8192 |
| Notes | Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs. Supports interlaced signal inputs. Does NOT support input resolution and bit depth settings. Supports loop-through output. |
| DP 1.2 | |
| Standard | DisplayPort 1.2 up to 3840×2160@60Hz |
| Max Width | 8192 |
| Max Height | 8192 |
| Notes | HDCP 1.3 compliant. Supports input resolution settings. Does NOT support interlaced signal inputs. |
| HDMI 2.0 | |
| Standard | HDMI 2.0 up to 3840×2160@60Hz |
| Max Width | 8192 |
| Max Height | 8192 |
| Notes | HDCP 2.2 compliant. Supports input resolution settings. Does NOT support interlaced signal inputs. Supports loop-through output. |
Output Connectivity
| Ethernet Output | 16x Gigabit Ethernet |
| Fiber Output | 4x Fiber |
Physical Specifications
| Power Input | 100-240V~, 50/60Hz, 2A max |
| Dimensions | 482.6 mm × 395.5 mm × 139.0 mm (19.0" × 15.6" × 5.5") |
| Net weight | 6.3 kg (13.9 lbs) |
| Operating Temperature | 0°C to +45°C |
| Packing box | 604mm × 524mm × 291mm (23.8" × 20.6" × 11.5") |
Features
✨ Key Features
- Variety of inputs and outputs: 1x DP 1.2, 4x DVI, 1x HDMI 2.0 with loop-through, 2x 12G-SDI with loop-through
- 16x Neutrik Ethernet outputs and 4x optical fiber outputs
- Loading capacity up to 10,400,000 pixels with maximum width 16K and maximum height 8K
- 3D mode (halves output capacity when enabled)
- 3x layers and 1x OSD: 1x main layer and 2x PIPs with adjustable layer priority, plus 1x OSD
- DVI mosaic: An input source can be made up of at most 4 DVI input sources
- HDR output: Greatly enhances display image quality, providing more clear and vivid image
- Decimal frame rates: Supports 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz
- Low-latency output: 2 frame delay from sending card to receiving card when used with NovaStar Armor series receiving cards (A8/A8s/A9s/A10s Plus)
- Customized BKG settings: Supports pure color and image backgrounds
- Personalized image scaling: Supports 3 scaling modes - full screen, pixel to pixel, custom
- Capture function: Captures input source image which can be used as a BKG image
- Image mosaic: Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor
- V-Can (smart control software from NovaStar) control supported
- Up to 10 presets: At most 10 user presets can be created and saved as templates
- Two working modes: Fiber converter and Video controller
- Supports input source hot backup
- Ethernet port backup test: Test whether pre-stored images, backup Ethernet ports and devices take effect without plugging and unplugging cables
- Free topology: Flexible screen configuration without worrying about unused blank areas when calculating Ethernet port load capacity
- EDID management supported: Supports custom EDID and standard EDID
Working Modes
| • Video Controller |
| • Fiber Converter |
Software
| Firmware 1.9.2 | ⬇️ Download |
| NovaLCT 5.8.0 | ⬇️ Windows |
| V-Can 3.8.0 | ⬇️ Windows ⬇️ macOS |
| Compatible Software | NovaLCT, V-Can |
Why Choose the NovaPro UHD Jr?
✓ Professional Grade
Built for high-end rental, staging, and permanent installations
✓ Advanced Processing
4K support with low latency and superior image quality
✓ Flexible Configuration
Multiple working modes adapt to any production requirement
✓ Full Support
3-Year NovaStar Warranty backed by largest NovaStar distributor in the USA
Frequently Asked Questions
Q: What size LED wall can the NovaPro UHD Jr drive?
The NovaPro UHD Jr can drive 10.4 million pixels with 16 Ethernet outputs, suitable for medium to large-scale LED displays.
Q: Is the NovaPro UHD Jr suitable for rental applications?
Absolutely. The NovaPro UHD Jr is designed for professional rental, staging, and touring applications where reliability is critical.
Q: Are the fiber modules included with NovaPro UHD Jr?
No, they are sold separately, not everyone uses fiber with this model so to offer the lowest price it doesn't include the modules. This device supports Single Mode and Multi Mode 10G SFP Modules. (Single Mode | Multi Mode)
