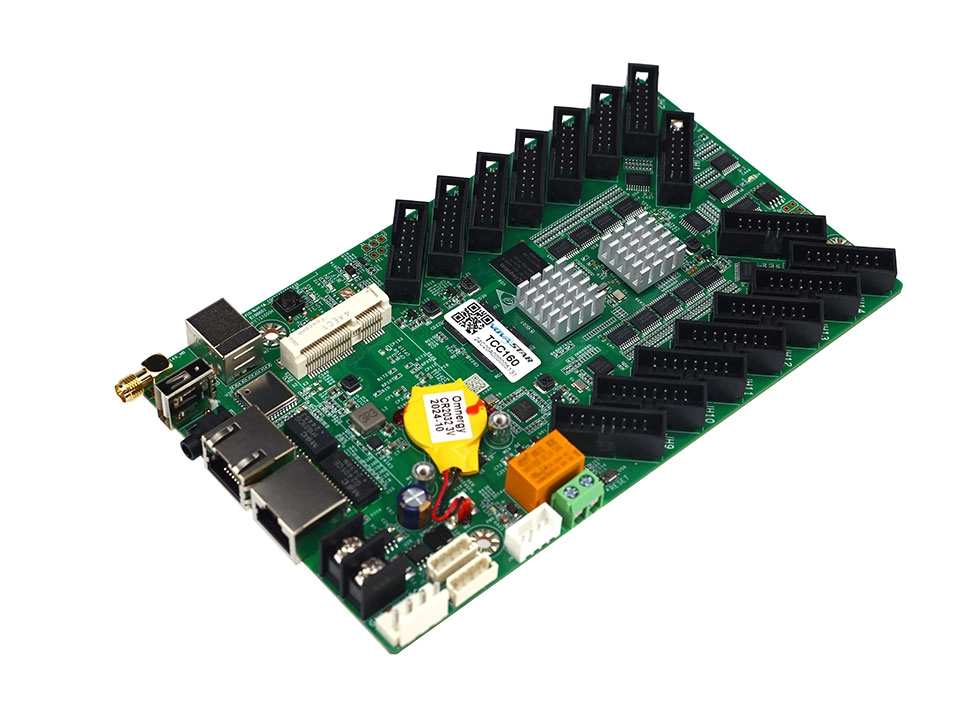

NovaStar TCC160
NovaStar TCC160
The TCC160 is an asynchronous full-color LED display control card from NovaStar with extensive IC driver support. It integrates sending and receiving capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with cloud-based publishing and monitoring platforms, the TCC160 enables users to manage LED displays from an Internet-connected device anywhere, anytime. The TCC160 features 16 standard HUB75E connectors for communication and supports a comprehensive range of LED driver ICs including MBI, MY, ICN, SM, TLC, CFD, SCL, FM, LS, DP, and CS series. Maximum pixel capacity per TCC160 is 260,000 pixels (512×512 for PWM driver ICs, 512×384 for general driver ICs). When cascaded, up to 650,000 pixels are supported. The hardware and software designs take into full consideration on-site setup, operation, and maintenance, making setup easier, operation more stable, and maintenance more efficient.
Key Highlights
Key Features
Light Sensor
Low Latency
Backup
Technical Specifications
Video Processing
| layers | 1 layer |
| Maximum Pixels | 260K pixels |
| Maximum Width | 2048 pixels (8192 pixels ultra-long screen) |
| Maximum Height | 2048 pixels |
Output Connectivity
| Ethernet Output | 1x Gigabit Ethernet (for cascading receiving cards) |
| Ethernet Control | 1x Fast Ethernet (network/control) |
| Audio Output | 1x Stereo audio output (OMTP headphones) |
| Wi-Fi | 2.4 GHz Wi-Fi (AP and Sta modes) |
| USB Ports | 1x USB 2.0 Type-A (upgrade/play/storage expansion, supports 128GB FAT32), 1x USB Type-B (for controlling computer connection) |
| RS485 Ports | 2x RS485 (optical sensor/temperature and humidity sensor) |
🔌 HUB75E Connector Pinouts
| Description | Pin | Signal | Signal | Pin | Description |
|---|---|---|---|---|---|
| Red data line 1 | 1 | R1 | G1 | 2 | Green data line 1 |
| Blue data line 1 | 3 | B1 | GND | 4 | Ground |
| Red data line 2 | 5 | R2 | G2 | 6 | Green data line 2 |
| Blue data line 2 | 7 | B2 | E1 | 8 | Address line E1 |
| Address line A1 | 9 | A1 | B1 | 10 | Address line B1 |
| Address line C1 | 11 | C1 | D1 | 12 | Address line D1 |
| Clock line | 13 | CLK | LAT | 14 | Latch line |
| Output enable line | 15 | OE | GND | 16 | Ground |
Enhanced 16-pin HUB75E connector for LED display data transmission. Features 5 address lines (E, A, B, C, D) supporting up to 1/32 scan mode (64 rows total). Pin 8 serves as an additional address line E, enabling higher resolution panels and more complex scan modes. The key difference from HUB75 is the additional E address line, doubling the addressable rows.
Hardware
| Processor | Quad-core 1.4 GHz |
| RAM | 2 GB |
| Storage | 32 GB |
| Operating System | Android 10 |
| Video Decoding | Hardware decoding of 4K videos (H.265/H.264/MPEG-4/VP9) |
| Playback Capability | 1x 4K, 3x 1080p, 8x 720p, 16x 480p, or 20x 360p videos |
Physical Specifications
| Power Input | DC 5V-12V (Max 12W) |
| Dimensions | 180.9 mm × 102.3 mm × 19.4 mm (7.1" × 4.0" × 0.8") |
| Net weight | 149.6 g |
Features
Software
| NovaLCT 5.8.0 | ⬇️ Windows |
| ViPlex Express 3.0.5.1501 | ⬇️ Windows |
| Compatible Software | NovaLCT, ViPlex Express |
🔌 Supported IC Drivers
📌 Firmware V1.1.0.0
⬇️ Download V1.1.0.0📌 Firmware V1.1.0.3
⬇️ Download V1.1.0.3📌 Firmware V1.1.0.4
⬇️ Download V1.1.0.4📌 Firmware V1.1.0.5
⬇️ Download V1.1.0.5📌 Firmware V1.1.0.6
⬇️ Download V1.1.0.6Why Choose the TCC160?
✓ All-in-One Design
Integrated solution saves rack space and simplifies setup
✓ Professional Features
Advanced processing with low latency and pixel-level calibration
✓ Maximum Reliability
Backed by 3-Year NovaStar Warranty plus Olympian LED support
✓ Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What is the default Wi-Fi password?
For older Taurus devices, the default Wi-Fi password is "12345678". For newer devices, the default password is "SN2008@+" unless you have already changed it. If you are locked out, there is a factory reset button on the device that will restore the default password, but this will also cause it to lose all configurations.
Q: How do I configure the TCC160 with NovaLCT?
Taurus media players are configured slightly differently from regular controllers. In NovaLCT go to User -> Media Player Login, select the device from the list and click "Connect System". The username is admin and the password will be 123456 or SN2008@+
Q: How do I update the Firmware on TCC160?
In ViPlex Express go to Control -> Player Upgrade. Click on "..." and specify the path to the .nuzip file. If you only have the .zip version you need to extract it so you can use the .nuzip file.
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
