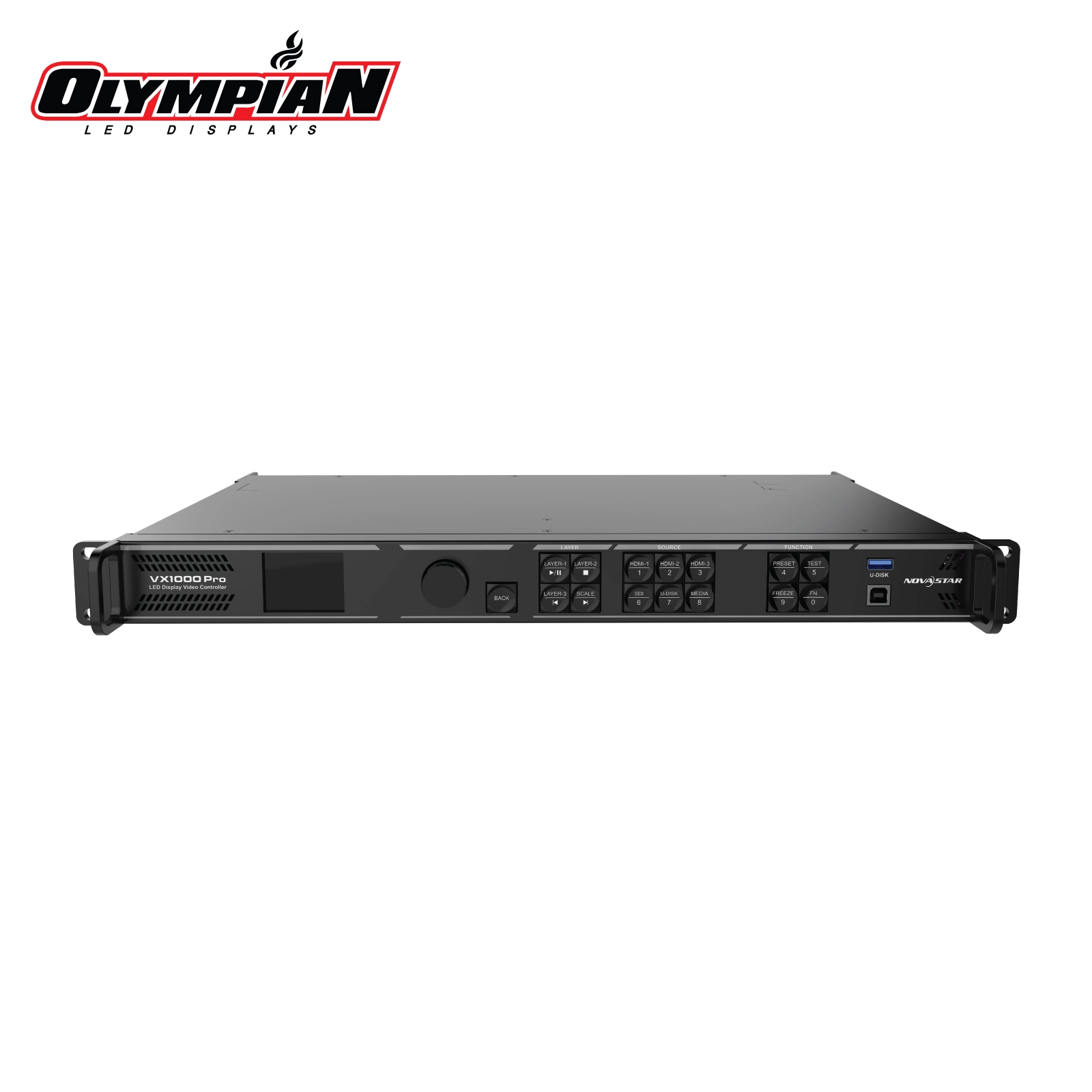

NovaStar VX1000 Pro
NovaStar VX1000 Pro
The VX1000 Pro is the current-generation all-in-one controller that combines video processing and video control functionalities into a single device. As the enhanced successor to the previous-generation VX1000, the VX1000 Pro offers significant improvements including HDMI 2.0 support, enhanced layer management, 256 user-defined presets (up from 10), improved 4K×2K@60Hz input capabilities, and Unico web-based software for remote control and configuration. Equipped with 10 Gigabit Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 6.5 million pixels, the VX1000 Pro can output at a maximum width of 10,240 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site. The VX1000 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 6 layers, output scaling, low latency, genlock support, pixel-level brightness and chroma calibration, and can be controlled via Unico web-based software, NovaLCT, or the front-panel interface.
Key Highlights
Key Features
3D
Genlock
4K
10G Fiber
Light Sensor
Free Layout
Low Latency
Color Calibration
12-bit
Brightness and Chroma Calibration
Technical Specifications
Video Processing
| layers | 6x 2K layers |
| Maximum Pixels | 6.5 million pixels |
| Maximum Width | 10240 pixels |
| Maximum Height | 8192 pixels |
| Max Input Resolution | 4K×2K@60HZ |
Input Connectors
| HDMI | 1x HDMI 2.0 (IN & LOOP), 2x HDMI 1.3 |
| FIBER | 1x 10G Fiber (OPT 1) |
| SDI | 1x 3G-SDI (IN & LOOP) |
| USB | 1x USB 3.0 (Play images or videos saved in a USB drive.) |
Input Resolution Capabilities
| HDMI 2.0 | |
| Standard | 4096×2160@60Hz |
| Max Width | 8192 (8192×1080@60Hz) |
| Max Height | 8188 (1080×8188@60Hz) |
| HDMI 1.3 | |
| Standard | 1920×1080@60Hz |
| Max Width | 2048 |
| Max Height | 2048 |
| SDI 3G-SDI | |
| Standard | 1920×1080@60Hz |
📊 HDMI 2.0 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 4K — 4096×2160 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
| Ultra-Wide 4K×1K — 3840×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/85 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/100 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120 | |
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60/72/120/144 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
| YCbCr | 4:2:0 | 8bit/10bit/12bit | 24/25/30/48/50/60/72/120/144 | |
📊 HDMI 1.3 Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 1080p — 1920×1080 | ||||
| RGB / YCbCr | 4:4:4 | 12bit | 24/25/30 | |
| RGB / YCbCr | 4:4:4 | 10bit | 24/25/30/48/50/60 | |
| RGB / YCbCr | 4:4:4 | 8bit | 24/25/30/48/50/60 | |
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |
📊 3G-SDI Resolution & Format Capabilities
| Resolution | Color Space | Sampling | Bit Depth | Supported Frame Rates (Hz) |
|---|---|---|---|---|
| 1080p — 1920×1080 | ||||
| YCbCr | 4:2:2 | 8bit/10bit/12bit | 24/25/30/48/50/60 | |

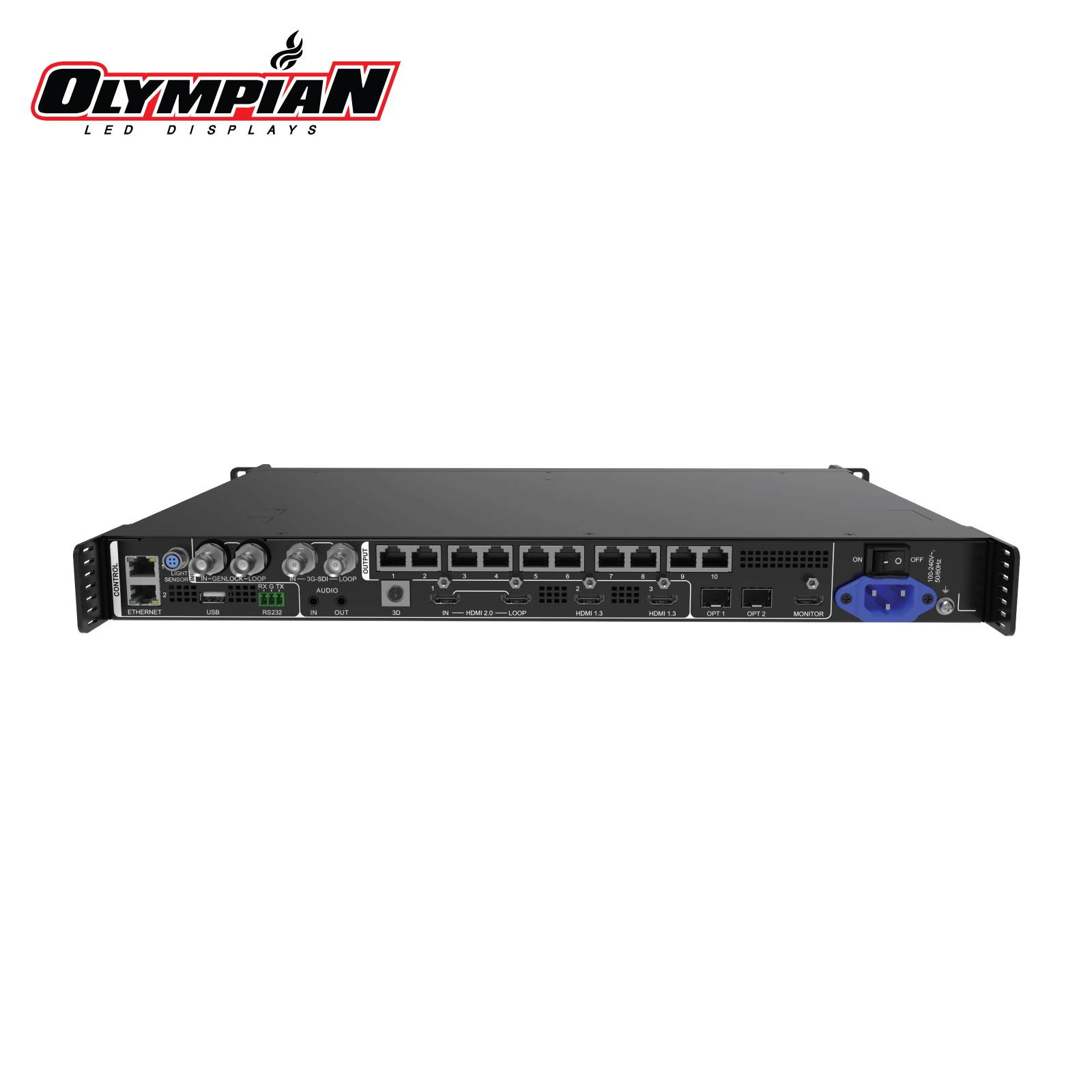

Output Connectivity
| Ethernet Output | 10x Gigabit Ethernet |
| Fiber Output | 2x Fiber |
| Monitoring Output | 1x HDMI 1.3 (monitoring) |
| Audio I/O | 3.5mm Audio Input/Output |
Physical Specifications
| Dimensions | 482.6 mm × 302.2 mm × 50.1 mm (19.0" × 11.9" × 2.0") |
| Net weight | 3.9 kg (8.6 lbs) |
| Packing box | 565 mm × 450 mm × 175 mm (22.2" × 17.7" × 6.9") |
| Total weight (packed with paper box) | 6.5 kg (14.3 lbs) |
| Flight case | 517mm × 471mm × 94mm (20.4" × 18.5" × 3.7") |
| Total weight (packed with flight case) | 9.2 kg (20.3 lbs) |
Features
Working Modes
| • Video Controller |
| • Fiber Converter |
| • ByPass Mode |
Software
| Firmware V1.2.0 | ⬇️ Download |
| NovaLCT 5.8.0 | ⬇️ Windows |
| Compatible Software | NovaLCT, Unico, VICP |
Why Choose the VX1000 Pro?
✓ Professional Grade
Built for high-end rental, staging, and permanent installations
✓ Advanced Processing
4K support with low latency and superior image quality
✓ Flexible Configuration
Multiple working modes adapt to any production requirement
✓ Full Support
3-Year NovaStar Warranty backed by largest NovaStar distributor in the USA
Frequently Asked Questions
Q: What size LED wall can the VX1000 Pro drive?
The VX1000 Pro can drive 6.5 million pixels with 10 Ethernet outputs, suitable for medium to large-scale LED displays.
Q: Is the VX1000 Pro suitable for rental applications?
Absolutely. The VX1000 Pro is designed for professional rental, staging, and touring applications where reliability is critical.
Q: Are the fiber modules included with VX1000 Pro?
No, they are sold separately, not everyone uses fiber with this model so to offer the lowest price it doesn't include the modules. This device supports Single Mode and Multi Mode 10G SFP Modules. (Single Mode | Multi Mode)
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
