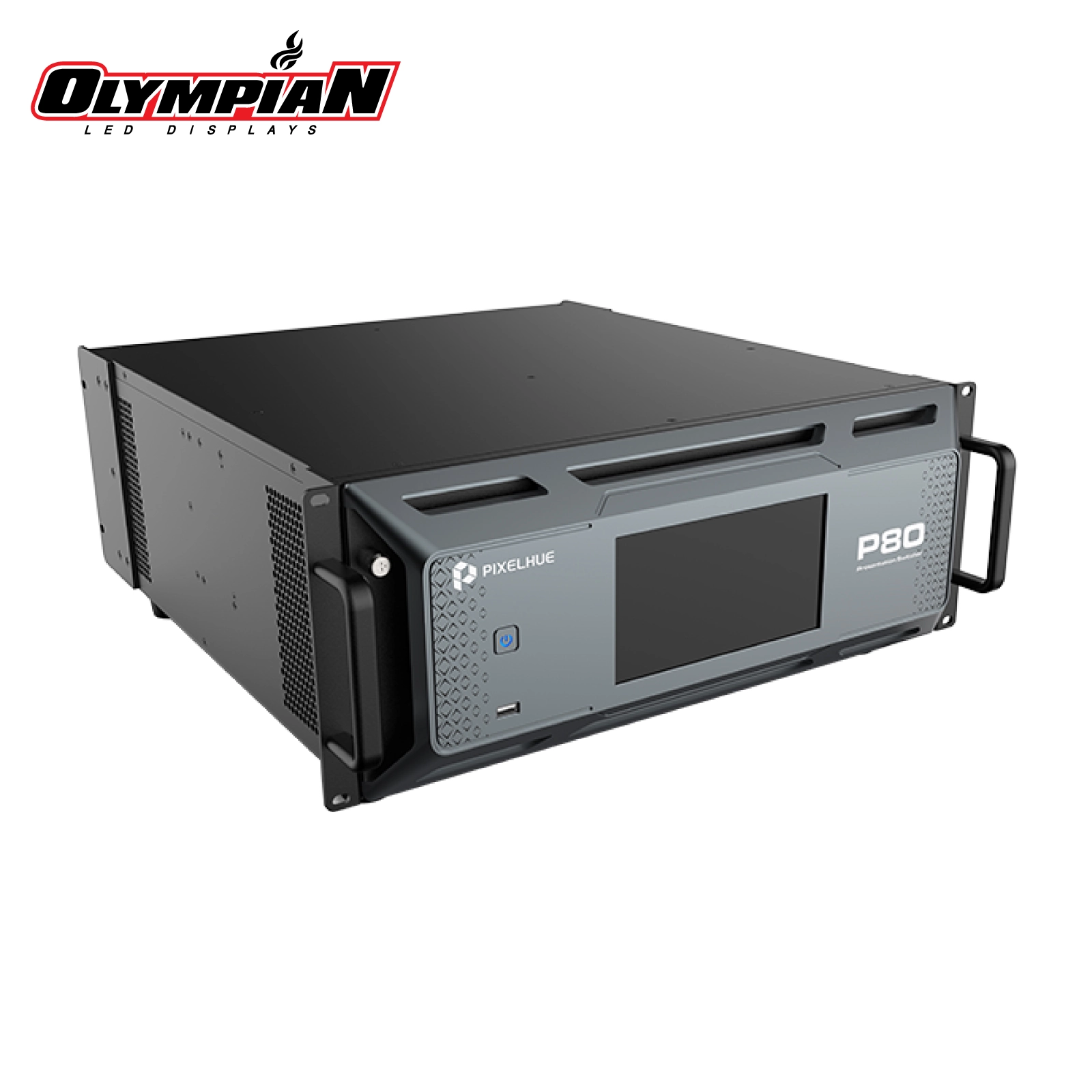

Pixelhue P80
Pixelhue P80
The P80 is not just another switcher—it's the command center for your most demanding productions. Built to handle up to 20x 4K inputs with effortless precision, P80 empowers operators to master every screen and every layer without compromise. From flawless keying and seamless cut & fill to dramatic live effects, transitions feel instantaneous and under total control. Designed for mission-critical shows, P80 delivers dual independent MVR outputs, full-link HDR conversion, and rock-solid reliability. Its 7-inch touchscreen and PixelFlow integration put streamlined control at your fingertips, whether you're driving a live broadcast, a massive stage, or a high-stakes corporate event. With P80, you don't just manage visuals—you command the entire experience.
Ideal Applications
Perfect for a wide range of professional LED display scenarios
Live broadcasts
Large-scale live events
Permanent video wall installations
Corporate events
Stage productions
Rental and staging
Key Highlights
Technical Specifications
Video Processing
| layers | 8 main layers + 4 PIP layers |
| Maximum Pixels | 35 million pixels |
| Maximum Width | 8192 pixels |
| Maximum Height | 7680 pixels |

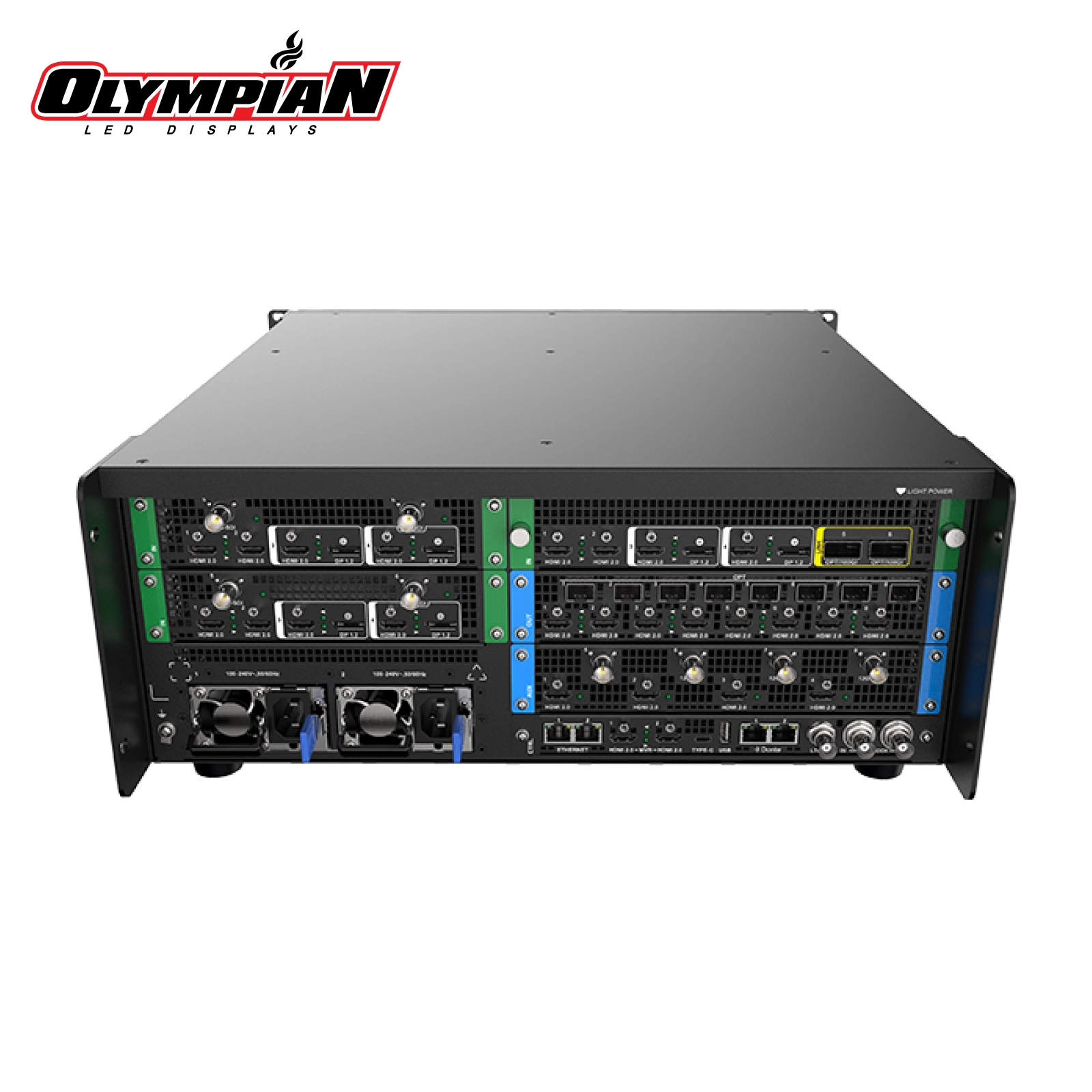

Input Connectors
| INPUTS | • 12x fixed 4K concurrent inputs: 4x HDMI 2.0, 4x HDMI 2.0/DP1.2 (selectable), 4x 12G-SDI • Swappable input card slot (supports P_HDMI2.0_DP1.2_OPT Link Card and Q8 HDMI2.0+DP1.2+12G-SDI Input Card) |
Input Specifications
HDMI 2.0
| Max Resolution | 4096×2160@60Hz 8bit 4:4:4 |
| Max Width | 8192 pixels (8192×1080@60Hz) |
| Max Height | 7680 pixels (1080×7680@60Hz) |
| Dynamic Range | HDR10/HLG/SDR |
| HDCP | HDCP 2.2 and HDCP 1.4 |
| Audio | 8-channel embedded audio (24bit/48kHz) |
DisplayPort 1.2
| Max Resolution | 4096×2160@60Hz 10bit 4:4:4 |
| Max Width | 8192 pixels (8192×1080@60Hz) |
| Max Height | 7680 pixels (1080×7680@60Hz) |
| Dynamic Range | HDR10/HLG/SDR |
| HDCP | HDCP 2.2 and HDCP 1.3 |
| Audio | 8-channel embedded audio (24bit/48kHz) |
12G-SDI
| Standards Support | ST-2082 (12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD), ST-259 (SD) |
| Compatibility | SD-SDI, HD-SDI, 3G-SDI, 6G-SDI |
| Max Resolution | 4096×2160@60Hz 10bit 4:2:2 |
| Audio | 8-channel embedded audio (24bit/48kHz) |
Output Specifications
Main Outputs
| Connectors | 8x HDMI 2.0 |
| 4K Concurrent | Up to 4x 4K in copy mode |
| DL Concurrent | Up to 8x DL in split mode |
| Max Resolution | 4096×2160@60Hz 8bit 4:4:4 |
| Dynamic Range | HDR10/HLG/SDR |
Flex Outputs
| Connectors | 4x HDMI 2.0 |
| Configuration | Configurable as independent screens or edge-blended widescreens |
| PIP Layers | Up to 4x 4K mixing PIP layers |
| Layer Effects | Flip, crop, mask, color adjustment |
SDI Matrix
| Connectors | 4x 12G-SDI |
| Content Mapping | Any content from input sources (HDMI 2.0, DP 1.2, 12G-SDI), MVR, PGM, and flex outputs |
| Compatibility | HD-SDI, 3G-SDI, 6G-SDI |
Multiviewer (MVR) Outputs
| Connectors | 2x HDMI 2.0 |
| Description | Dual independent Multiviewer outputs |
Background Image Capabilities
| Storage Capacity | Up to 1 GB |
| Supported Formats | PNG, BMP, JPG, JPEG |
| Max Still Backgrounds | 4 |
| Import Sources | Control computer or event controller |
| Capture Sources | Input sources and PGM |
Transition & Effects
| Transition Types | Seamless transition from PVW to PGM via Take, Cut, or T-bar |
| Transition Modes | Copy, Swap |
| Duration Range | 0.1s to 10s (customizable) |
| Fade Support | Fade in and out supported |
| Fade to Black (FTB) | Fade to Black (FTB) supported |
PixelFlow Software Features
| Stability | Long-term stable running |
| User Interface | Upgraded and visualized UI, adaptive to U5/U5 Pro/PC screens |
| Parameter Control | Software parameter controllable by U5/U5 Pro encoders or faders |
| Simulator | Fully functional simulator for offline configuration and practice |
| Multi-Unit Control | Multiple P80 units can be controlled simultaneously from a single event controller/PC when on same LAN |
Processing Capability
| Architecture | FPGA-based high-performance image enhancement |
| Internal Processing | Real 4K60p 4:4:4 10-bit |
| Latency | Ultra-low latency, as low as 1 frame in proper configuration |
| Color Space Support | BT.601, BT.709, BT.2020, DCI-P3 |
| HDR Conversion | Free conversion between SDR, HDR10, and HLG |
| DSK Capability | Advanced DSK: smart key, chroma key, and luma key |
| HDCP Compatibility | HDCP 1.3, HDCP 1.4, HDCP 2.2 |
Control Options
- 7-inch graphical touchscreen on front panel
- Event controller U5/U5 Pro
- Event management software PixelFlow
- Third-party control system Stream Deck (Companion integrated)
Presets
| Total Presets | 256 |
| Layer Presets | 256 |
Working Modes
| • Presentation Switcher |
| • Live Production |
Why Choose the P80?
✓ All-in-One Design
Integrated solution saves rack space and simplifies setup
✓ Professional Features
Advanced processing with low latency and pixel-level calibration
✓ Maximum Reliability
Backed by 3-Year NovaStar Warranty plus Olympian LED support
✓ Proven Performance
Trusted by production companies and rental houses nationwide
Frequently Asked Questions
Q: What warranty is included?
All NovaStar products include a full 3-year manufacturer warranty when purchased from authorized distributors like Olympian LED.
Q: Do you offer volume pricing?
Yes! As the largest NovaStar distributor in the USA, we offer special pricing for bulk orders and repeat customers. Contact our sales team for a custom quote.
Q: Do you have this in stock?
We maintain over $2 million in inventory at our Titusville, Florida warehouse. Most orders ship same-day. Contact us to confirm current availability.
Q: Can I get NET 30 payment terms?
NET 30 terms are available for qualified businesses and established customers. Please contact our sales team to discuss payment options.
Why Buy from Olympian LED?
Largest US Distributor
Best pricing guaranteed as the largest NovaStar distributor in America
Ships Same Day
Over $2M in stock at our Florida warehouse for immediate delivery
Flexible Terms
NET 30 payment terms and volume discounts for qualified businesses
Expert Support
Technical support from our team of LED display specialists
Ready to Get Started?
For pricing, availability, or technical questions about the P80, contact Olympian LED today.
